Scientifica Universal Motorised Stage (UMS)
Scientifica Universal Motorised Stage (UMS)

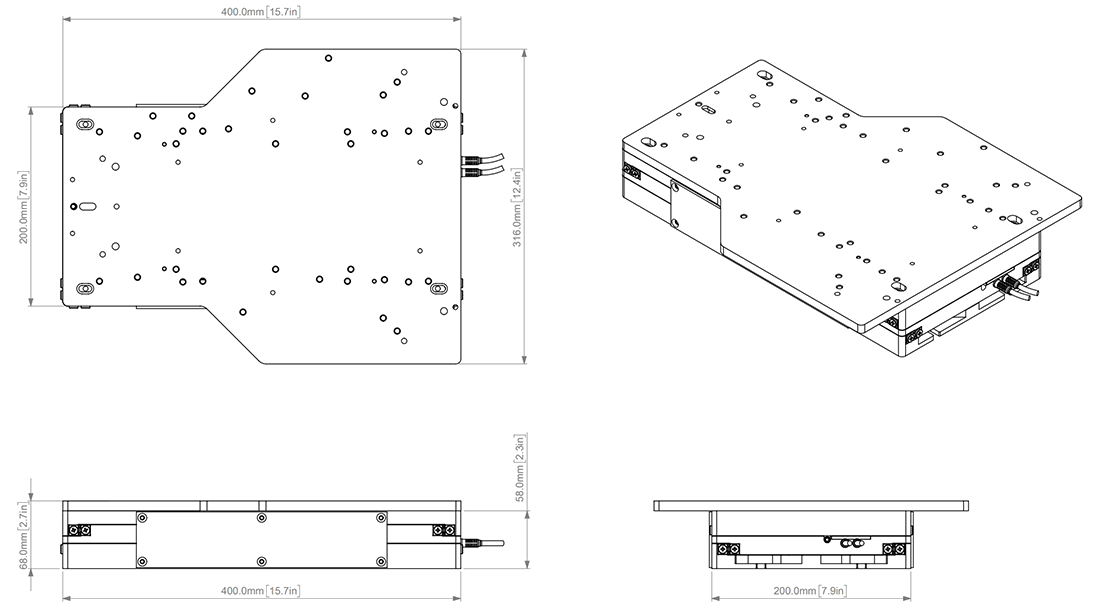

Schematics
Scientifica Universal Motorised Stage (UMS) schematics
Design and specifications
- Number of axes: 2
- Travel distance: 50 mm (in x and y-axes)
- Electronic resolution: 20 nm
- Minimum step size: 0.1 µm
- Minimum speed: 1 µm per second
- Maximum speed: 4 mm per second
- Memory positions: 50 on control device (unlimited via LinLab)
- Software: LinLab for Windows
