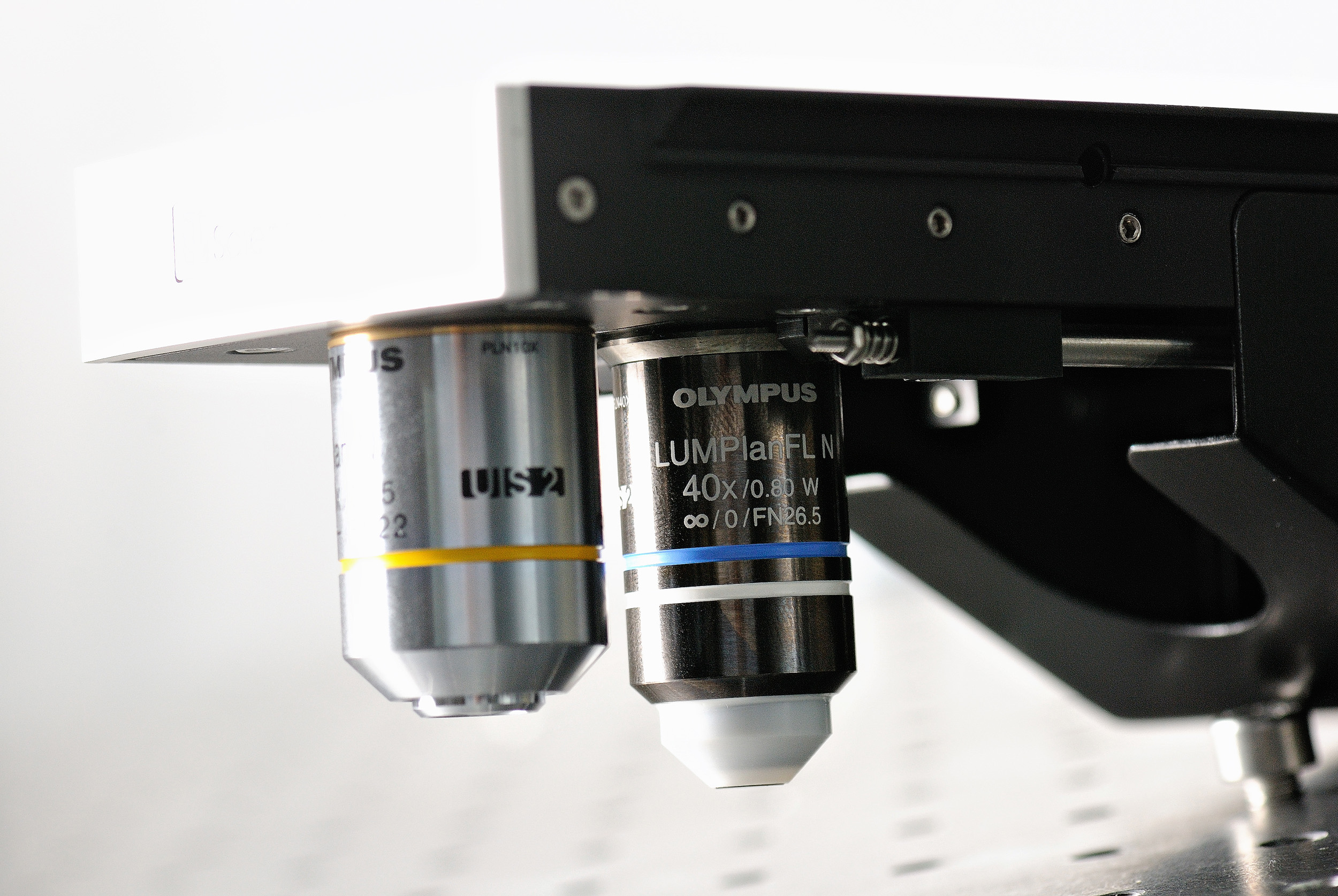

Motorised Objective Changer (MOC)

The MOC can change smoothly between two objectives and display within LinLab which objective is in position. The user has full control over the speed of objective exchange. The intelligent motion allows your objectives to be placed safely into your chamber. It also retains par focality and par centrality, so you can switch lenses and keep your sample perfectly in focus, and centrally placed by storing the optimum settings with the control options.

Motorised Objective Changer (MOC)
Smooth switching of objectives

The MOC ensures a smooth transition between two objectives.

Objective position display

Which objective is in position is clearly displayed in LinLab.

Keep your sample in focus

The MOC retains parfocality and parcentrality, so your sample stays aligned and in focus even after objectives have been switched.

Full control

The user has full control over the speed of objective exchange.

Compatible with all contrast techniques

Including Differential Interference Contrast (DIC), Dodt Gradient Contrast, Oblique contrast and Phase contrast.

Suitable objectives
Suitable objectives
One low magnification and one high magnification RMS threaded objective
Maximum length of objectives
Maximum length of objectives
45 mm
Maximum diameter of objectives (barrel)
Maximum diameter of objectives (barrel)
25 mm
Maximum diameter of objectives (adjustment collar)
Maximum diameter of objectives (adjustment collar)
30 mm
