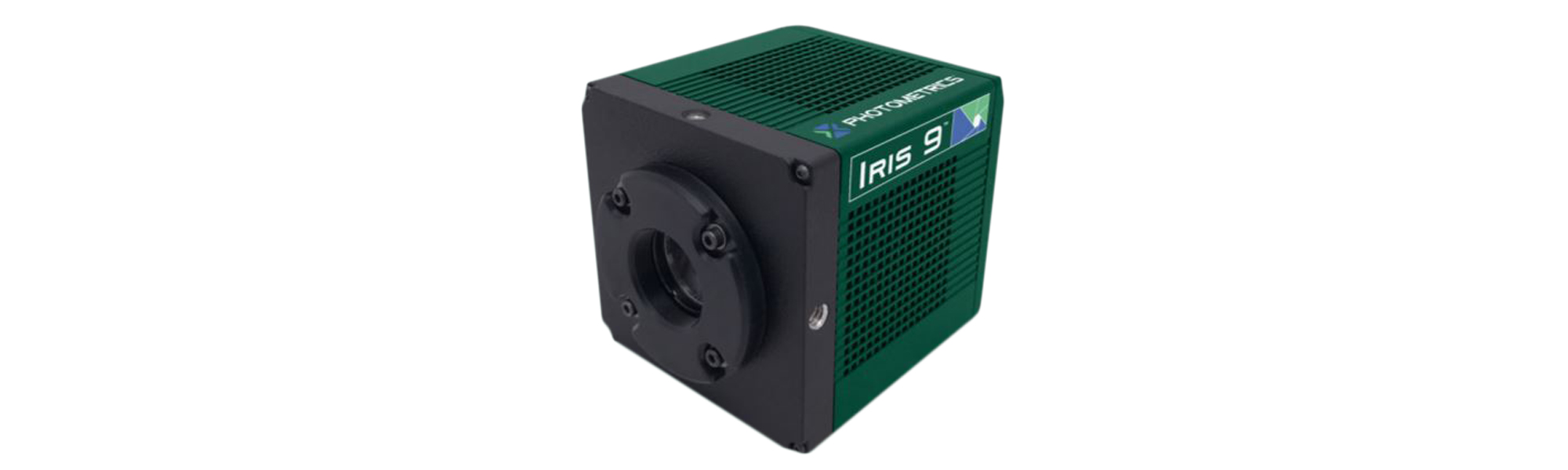

Photometrics Iris 9™ Scientific CMOS Camera

Iris 9 Scientific CMOS camera is designed to deliver extremely high-resolution images for live cell microscopy applications. Iris 9 delivers a 9 Megapixel sensor with a 17.8mm field of view ensuring it can maximise the number of cells captured in a single frame.

(Available USB and PCIe)

For more information: www.photometrics.com

Photometrics Iris 9™ Scientific CMOS Camera
9 Megapixel Sensor | 17.8mm Field of View

Maximise the imaging area and increase the number of cells acquired per frame

Optimized 4.25µm Pixel Size

Image the finer details of your samples and maintain proper spatial sampling at 40X magnification

Fast Frame Rates

Capture dynamic cellular events with high temporal resolution

High Quantum Efficiency

Maximises the ability to detect signals, enables shorter exposure times and minimizes photo-toxicity

Low Read Noise

Maximise ability to detect extremely faint fluorescence signals

Large Dynamic Range

Measure both bright and dim signal levels within the same image

The 4.25µm pixels provide highly detailed images across the imaging plane and allow for Nyquist spatial sampling at 40X magnification. The camera can capture dynamic cellular events at 30 frames per second for the full frame, and at thousands of frames per second with regions.

The Iris 9 has a high quantum efficiency and low noise levels to maximise dim signal detection and allowing for the use of shorter exposure times to minimise cellular photo-damage.

The Iris 9 is the ideal camera to deliver high resolution images at high frame rates for live-cell microscopy applications.


Primary Applications

  • Light Sheet Microscopy
  • Multi-Color Fluorescence
  • High Content Screening
  • Tiling Applications

Sensor
Sensor
GPixel GSense 5130 Scientific CMOS sensor
Active Array Size
Active Array Size
2960 x 2960 (9 Megapixel)
Pixel Area
Pixel Area
4.25µm x 4.25µm (18.06µm2)
Sensor Area
Sensor Area
12.61mm x 12.61mm | 17.8mm diagonal

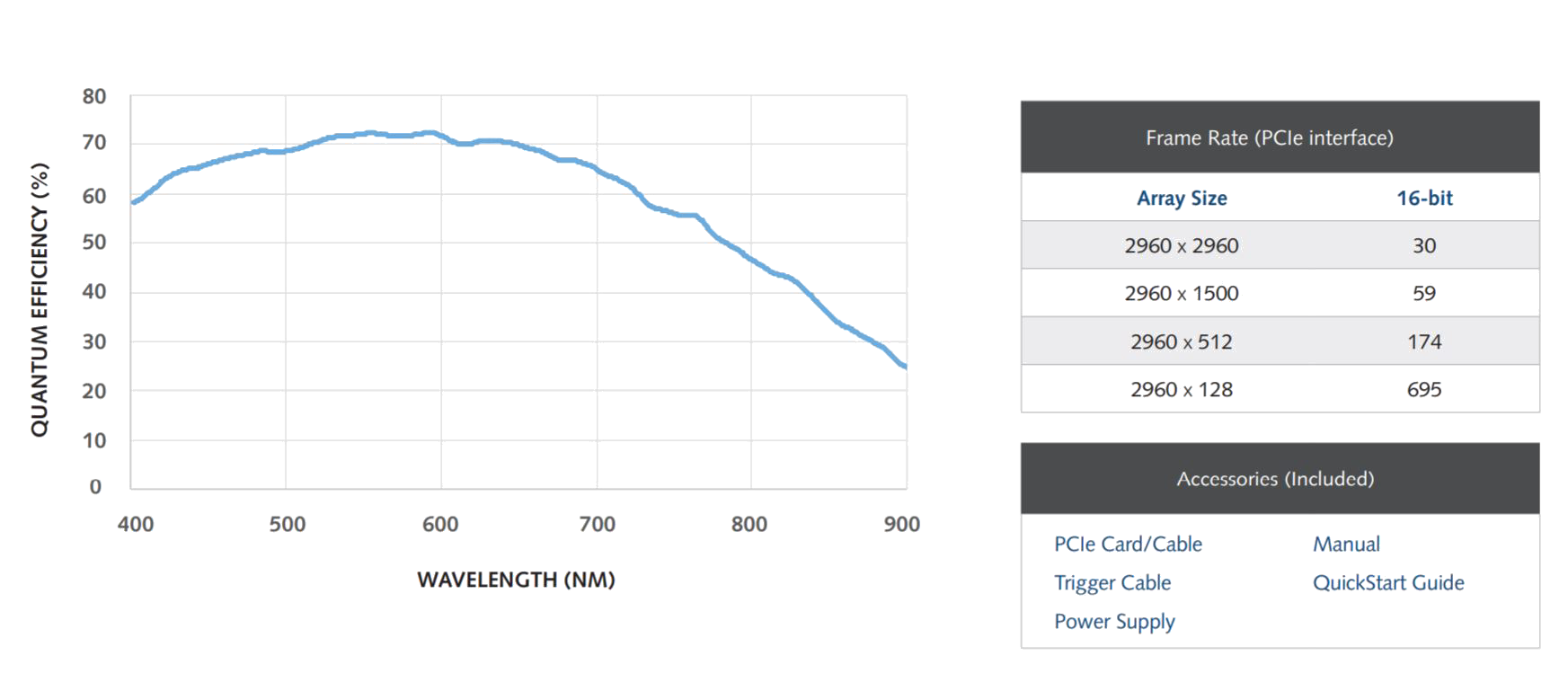

Peak QE%
Peak QE%
>73%
Read Noise
Read Noise
1.5e
Full-Well Capacity
Full-Well Capacity
13,000e
Bit Depth
Bit Depth
16-bit
Readout Mode
Readout Mode
Rolling Shutter | Effective Global Shutter
Binning
Binning
2x2 (on FPGA)
Cooling Performance
Cooling Performance
Sensor Temperature | Dark Current
Air Cooled
Air Cooled
0ºC @ 30ºC Ambient | 0.5e-/pixel/second
Camera Interface
Camera Interface
Digital Interface
Digital Interface
PCIe
Lens Interface
Lens Interface
C-Mount

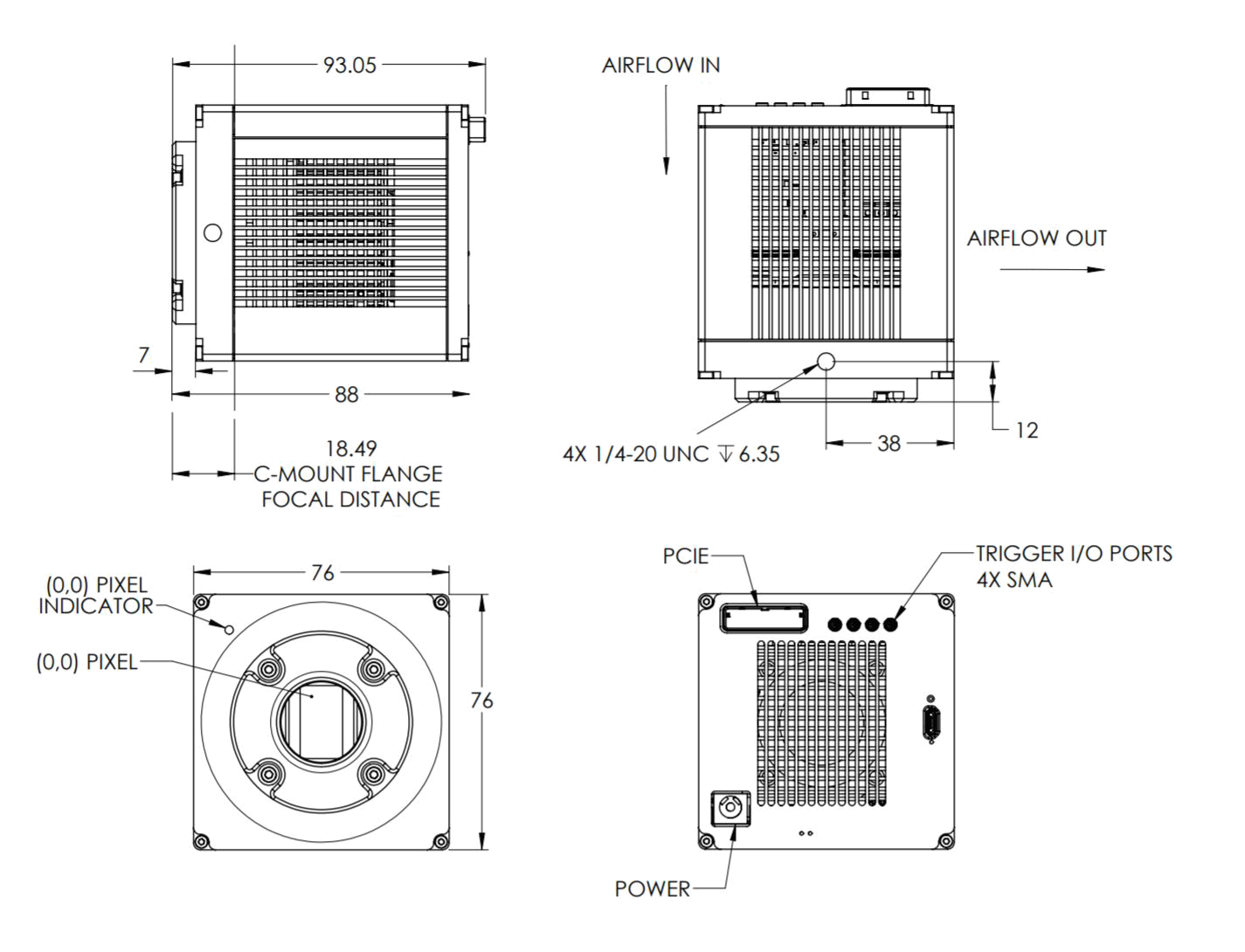

Mounting Points
Mounting Points
¼ 20” mounting point on each side
Triggering Mode
Triggering Mode
Input Trigger Modes
Input Trigger Modes
Trigger-First: Sequence triggered on first rising edge | Edge: Each frame triggered on rising edge
Output Trigger Modes
Output Trigger Modes
Any Row: Expose signal is high while any row is acquiring data | All Rows: Effective Global Shutter – Expose signal is high when all rows are acquiring data | Signal is high for set Exposure time | Rolling Shutter: Effective Global Shutter – Expose signal is high when all rows are acquiring data | Signal is High for set Exposure time – Readout Time
Output Trigger Signals
Output Trigger Signals
Expose Out, Read Out, Trigger Ready
