Scientifica Inverted Movable Top Plate (IMTP)

Designed for combining electrophysiology and imaging experiments with an inverted microscope.

Move your sample whilst maintaining long-term patch clamp experiments.

Benefits

Compatible with most inverted microscopes

The IMTP can be used with a large number of microscopes from the major manufacturers, such as Nikon, Olympus, Leica and Zeiss.

Simple mounting

Easily mount manipulators like the PatchStar to the top plate with sliding carriages for exact positioning.

Super-smooth movement

Micrometer controls and crossed roller bearings ensure smooth motion enabling you to search areas of interest even when a cell is patched.

Ultra-stable design

Once in the desired position the stable design allows for long-term electrophysiology and imaging recordings.

Downloads

Download the Inverted Movable Top Plate (IMTP) brochure for more information.

Design & Specifications

Number of axes	Number of axes 2
Travel distance	Travel distance 25 mm (in X and Y axes)
Chamber adapters accepted	Chamber adapters accepted 108 mm & 110 mm

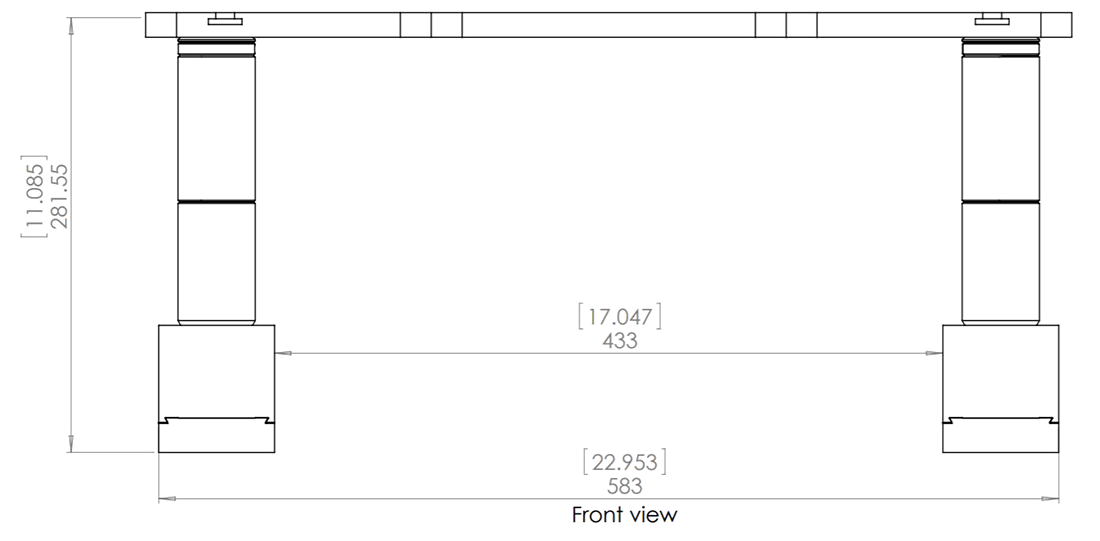

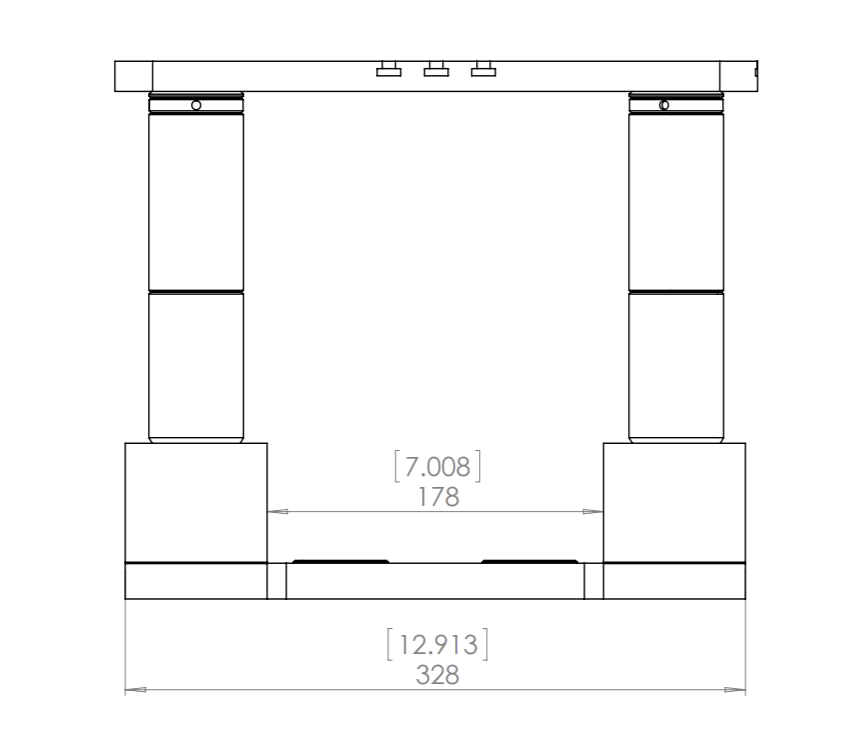

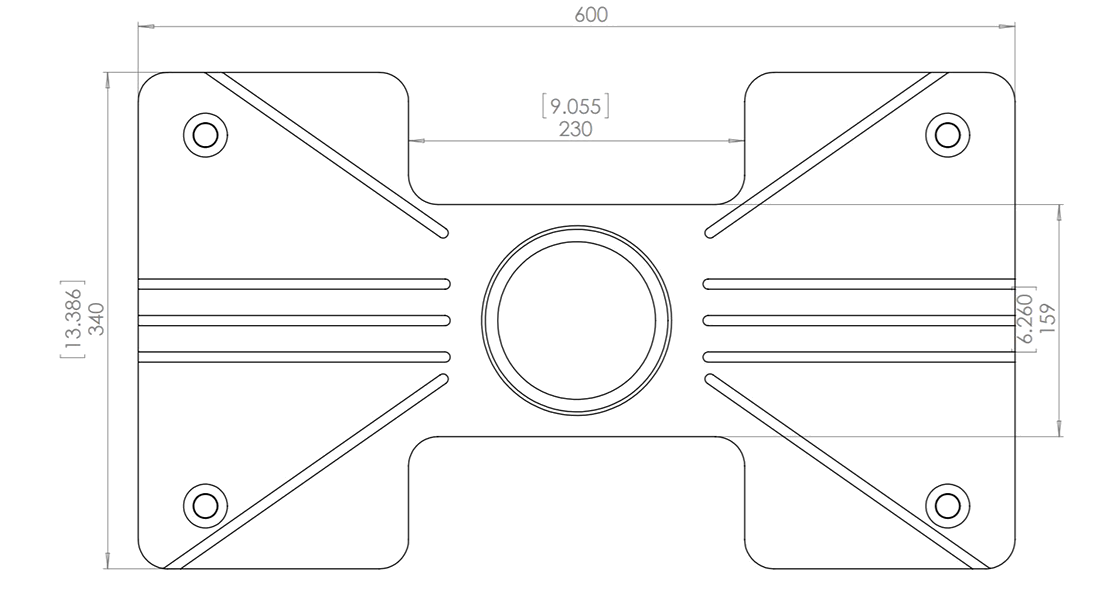

Schematics

Research Papers Expand

Climent, M., Quintavalle, M., Miragoli, M., Chen, J., Condorelli, G. and Elia, L. (2018)TGF Triggers miR-143/145 Transfer From Smooth Muscle Cells to Endothelial Cells, Thereby Modulating Vessel Stabilization. Circulation Research, 116(11), p 1753-1764 http://dx.doi.org/10.1161/CIRC...
