Photometrics Prime 95B Scientific CMOS Camera
Photometrics Prime 95B Scientific CMOS Camera
样品数据

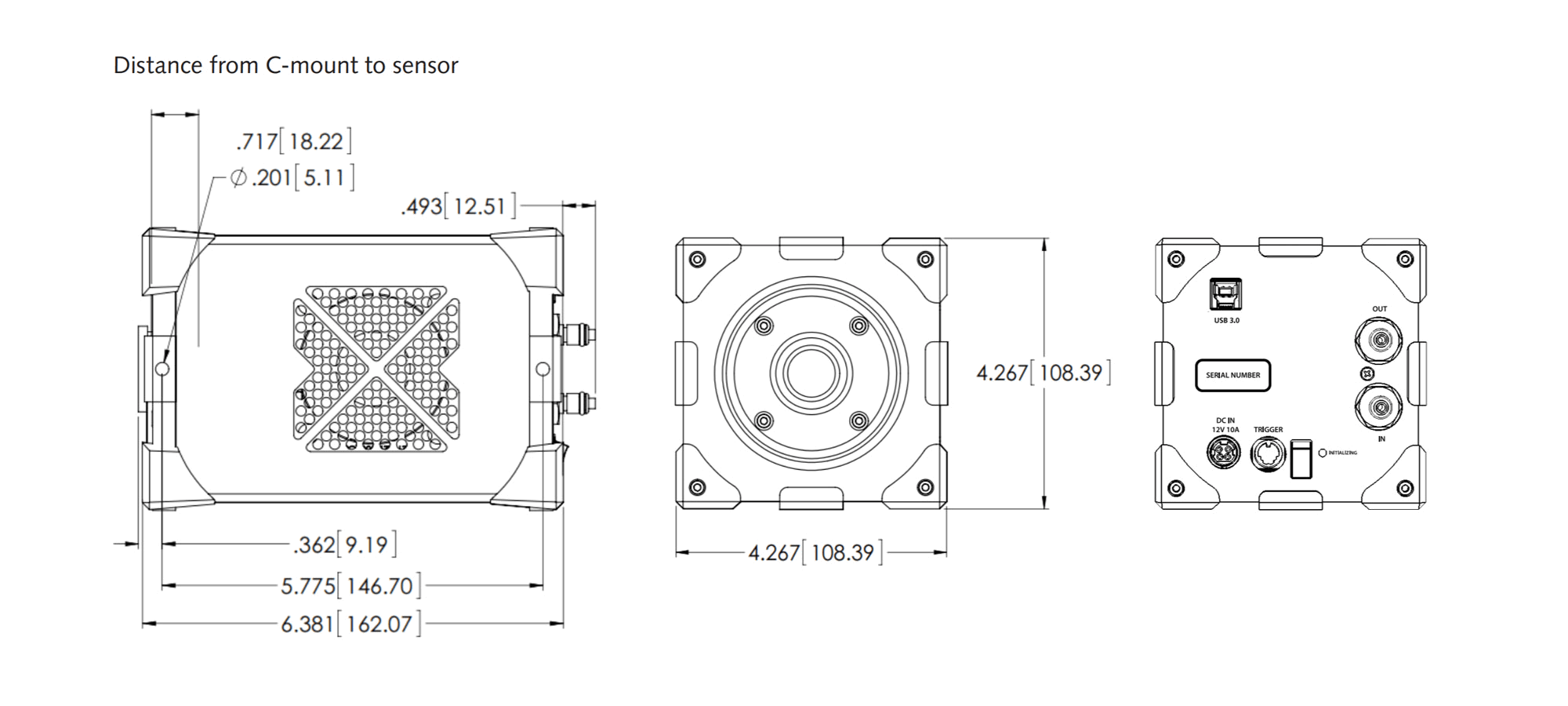

Photometrics Prime 95B Scientific CMOS Camera Schematics
Specifications
- Read noise: 1.6e- (Median)
- : 1.8e- (RMS)
- Quantum efficiency: 95%
- Pixel area: 11µm x 11µm
- Dynamic range: 61,500:1
- Frame rates: 41fps @ 16-bit / 82fps @ 12-bit
- Active array size: 1200 x 1200 pixels (1.44 Megapixel)
- Sensor: GPixel GSense 144 BSI CMOS Gen IV, Grade 1 in imaging area
- Sensor area: 13.2mm x 13.2mm / 18.7mm diagonal
- Full-well capacity: 80,000e- (Combined Gain)
- : 4,500e- (High Gain)
- Bit depth: 16-bit (Combined Gain)
- : 12-bit (High Gain)
