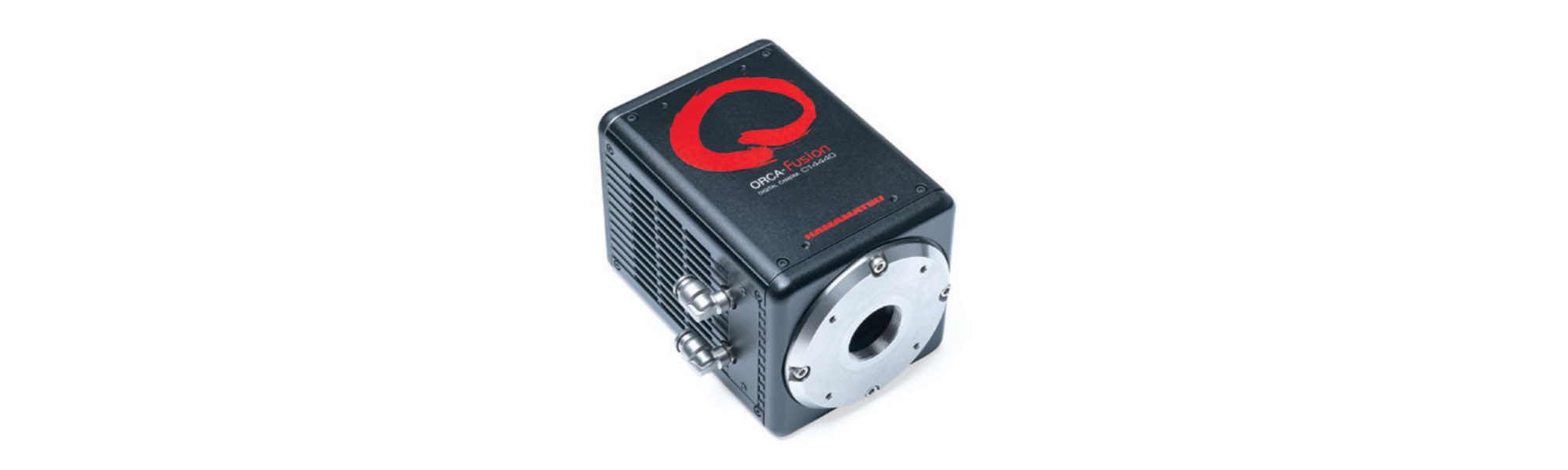

Hamamatsu Orca-Fusion CMOS Camera

Hamamatsu Orca-Fusion sCMOS Camera

The ORCA-Fusion scientific CMOS (sCMOS) camera is optimised for low-light quantitative imaging. It provides beautiful images and robust data at all light levels, but especially in low-light conditions. The exceptionally low and highly uniform read noise of the ORCA-Fusion means that when a low number of photons are emitted by the sample, they are not lost in the noise, but detected and reliably quantified.

Hamamatsu Orca-Fusion sCMOS Camera
High resolution : 2304 x 2304 (5.3 Megapixels)

High speed : 100 frames/s (at 2304 X 2048 ROI)

Dynamic range : 21,400:1

Pixel size : 6.5 μm X 6.5 μm

Read noise : 0.7 electrons, rms (Ultra Quiet Scan)

Prnu : 0.06 % rms (@ 7500 electrons)

DSNU : 0.3 electrons rms

Peak QE : 80 %

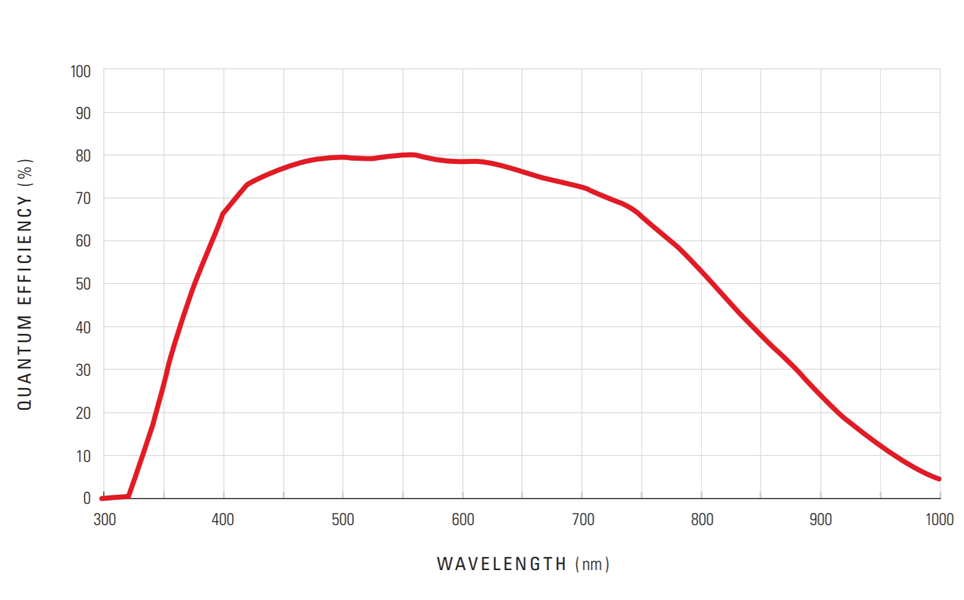

Spectral Response

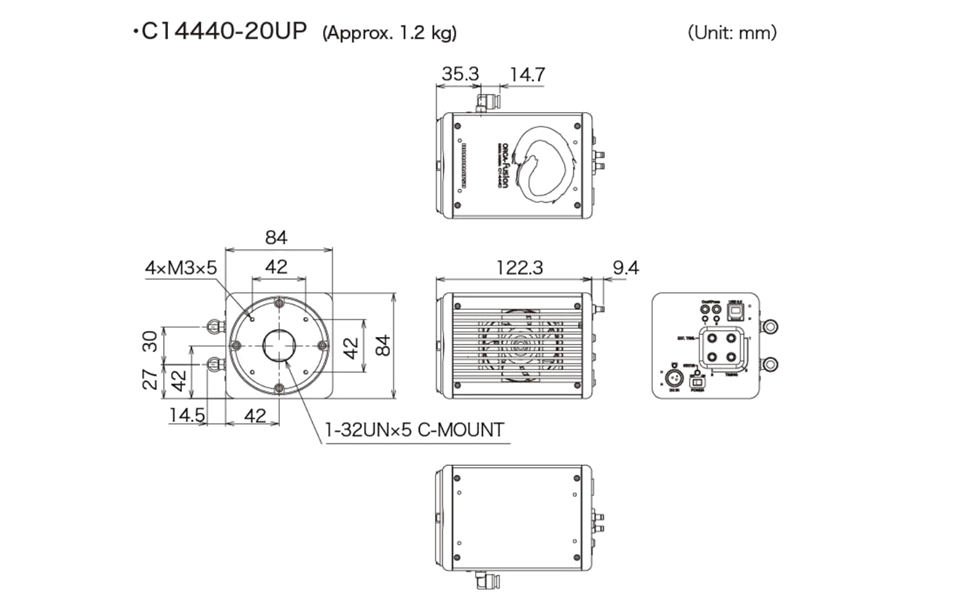

Schematics

Type number
Type number
C14440-20UP
Imaging device
Imaging device
sCMOS
Effective no. of pixels
Effective no. of pixels
2304(H)×2304(V)
Cell size
Cell size
6.5 μm×6.5 μm
Effective area
Effective area
14.976 mm (H)×14.976 mm (V)
Full well capacity
Full well capacity
15 000 electrons(typ.)
Readout speed
Readout speed
Fast scan: 89 frames/s with CoaXPress or 31.6 fps with USB3.0 (2304 x 2304)
Fast scan: 100 frames/s with CoaXPress (2304 x 2048)
Standard scan: 23.2 frames/s with CoaXPress or USB3.0 (2304 x 2304)
Ultra quiet scan: 5.4 frames/s with CoaXPress or USB3.0 (2304 x 2304)
Readout noise
Readout noise
Fast scan: 1.4 electrons rms
Standard scan: 1.0 electrons rms
Ultra quiet scan: 0.7 electrons rms
Cooling method
Cooling method
Peltier cooling
Cooling temperature
Cooling temperature
Forced air (Ambient at +25 ℃): -5 ℃
Water (+25 ℃): -5 ℃
Water (+15 ℃): -15 ℃
Dark current
Dark current
0.5 electrons/pixel/s(-5 ℃)(typ.)
0.5 electrons/pixel/s(-5 ℃)(typ.)
0.2 electrons/pixel/s(-15 ℃)(typ.)
Dynamic range
Dynamic range
21 400 : 1(typ.)
External trigger mode
External trigger mode
Edge, Level, Sync readout, Start, Global reset edge, Global reset level, programmable
External trigger signal routing
External trigger signal routing
SMA x1
Trigger delay function
Trigger delay function
Yes
Trigger output
Trigger output
Global exposure timing, trigger ready, low, high
External signal output routing
External signal output routing
SMA x 3
Interface
Interface
CoaXPress (6.25Gbpsx2 lane) and USB3.0 Super Speed
A/D converter
A/D converter
16 bit / 12 bit / 8 bit
Lens mount
Lens mount
C-mount
