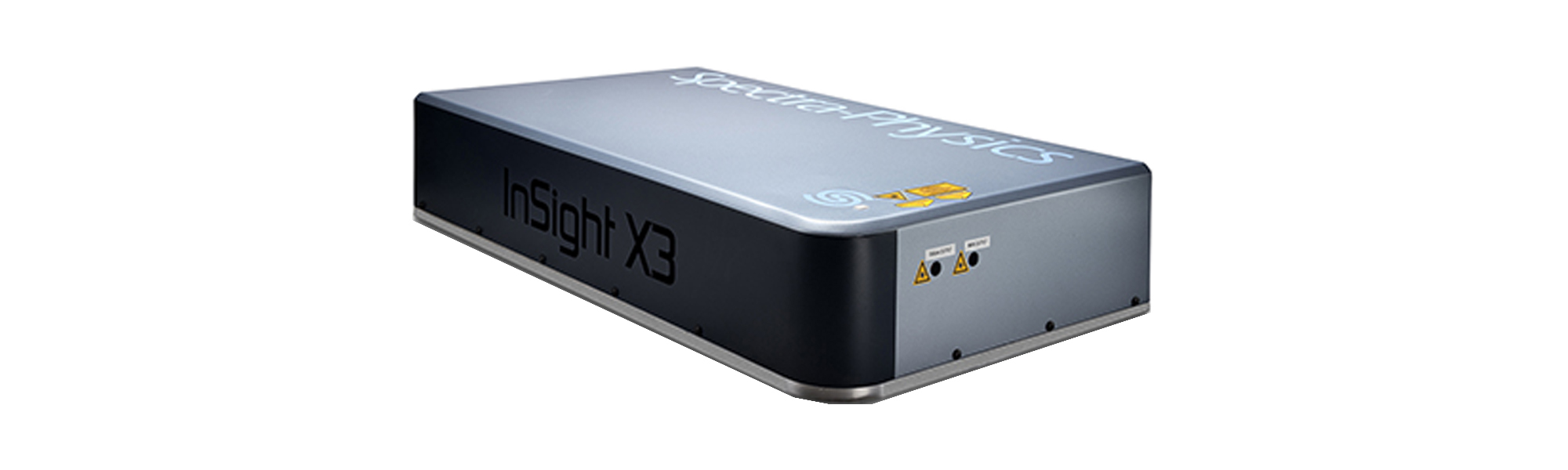

Spectra-Physics InSight X3

Spectra-Physics’ new InSight® X3™ is the third generation of Spectra-Physics’ industry leading InSight platform, specifically designed for advanced multiphoton microscopy applications.

For more information, please visit http://www.spectra-physics.com

Spectra-Physics InSight X3

Broadest tuning range: 680 nm to 1300 nm for deepest imaging

Based on patented technology, InSight X3 features a broad 680 nm to 1300 nm continuous, gap free tuning from a single source, nearly double the tuning range of legacy Ti:Sapphire ultrafast lasers.

Dual output at 1045 nm with optional pre-compensation for two-color imaging

When equipped with the fixed 1045 nm dual beam option, InSight X3 fully supports the diverse needs of multimodal imaging. The two synchronized output beams enable easy simultaneous imaging of various fluorescence proteins (for example GFP and mCherry) and genetically encoded calcium indicators (GCaMP6 and jRGECO1a), SHG/THG imaging, and advanced imaging techniques such as CARS and SRS.

Short pulse width and highest peak power for maximum fluorescence

 InSight X3 delivers high average and peak power levels across the tuning range, including critical near infrared wavelengths above 900 nm for deepest penetration in-vivo.

Applications

  • Multiphoton microscopy
  • Multimodal imaging including CARS, SRS, SHG, THG
  • Optogenetics
  • Time-resolved photoluminescence
  • Non-linear spectroscopy
  • Optical computed tomography
  • Surface second harmonic generation
  • Terahertz imaging
  • Semiconductor metrology

InSight X3
InSight X3
Tuning Range
Tuning Range
680 nm–1300 nm
Average Power
Average Power
>1.0 W at 700 nm
>1.6 W at 800 nm
>2.0 W at 900 nm
>1.8 W at 1000 nm
>1.6 W at 1100 nm
>1.4 W at 1200 nm
>1.0 W at 1300 nm
Pulse Width
Pulse Width
<200 fs
Pre-compensation Dispersion Range
Pre-compensation Dispersion Range
680 nm: -12,000 fs2 to -40,000 fs2
800 nm: 0 fs2 to -25,000 fs2
1050 nm: 0 fs2 to -10,000 fs2
1300 nm: -3,000 fs2 to -8,000 fs2
Dual Option
Dual Option
Tuning Range
Tuning Range
1045 nm (fixed)
Average Power
Average Power
>2.0 W at 1045 nm
Pulse Width
Pulse Width
<200 fs
Pre-compensation Dispersion Range
Pre-compensation Dispersion Range
Optional1045 nm: – 15,000 fs2 fixed
InSight X3 / Dual Option
InSight X3 / Dual Option
Repetition Rate
Repetition Rate
80 MHz ±0.5 MHz
Noise
Noise
<0.5%
Stability
Stability
<±1%
Spatial Mode
Spatial Mode
TEM00, M2 <1.2
Polarization
Polarization
>500:1 horizontal
Beam Divergence, full angle
Beam Divergence, full angle
<1.5 mrad
Beam Diameter (1/e2)
Beam Diameter (1/e2)
1.1 ±0.2 mm
Beam Roundness
Beam Roundness
0.8–1.2
Beam Pointing Stability
Beam Pointing Stability
<350 µrad full range
Tuning Speed
Tuning Speed
>50 nm/sec full range
