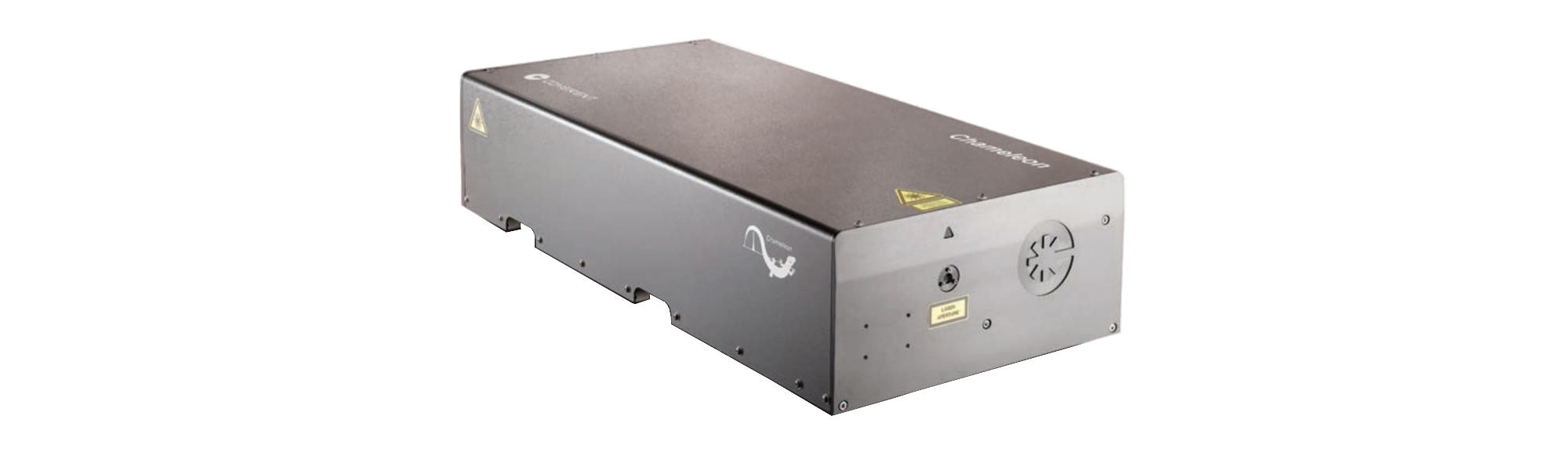

Coherent Chameleon Vision Lasers (I & II)

The Chameleon Vision lasers build on the dependable and innovative Chameleon Ultra Ti:Sapphire platform by adding dispersion precompensation to maximize peak power where it counts – at your sample plane.

For more information, visit https://www.coherent.com

Coherent Chameleon Vision Lasers (I & II)

Ultrawide Tuning Range

Chameleon Vision’s 680 nm to 1080 nm tuning range allows peak excitation of any marker – from short-wavelength dyes such as Indo or Fura, ubiquitous fluorescent probes such as eGFP, and also red shifted probes such as the mFruits and RCaMP. High peak power at the sample also ensure optimum native fluorescence excitation or SHG imaging.

High Image Resolution and Optimal 2 Photon Excitation Efficiency

Careful design ensure the pristine beam parameters of the Chameleon Ultra cavity are preserved through the dispersion precompensation stage, ensuring lowest losses through your microscope and lowest astigmatism in the excitation plane, which in turn delivers best image resolution and optimal 2 photon excitation efficiency.

High Precompensated Power

Chameleon Vision lasers deliver highest precompensated average power of any automated Ti:Sapphire laser, and as such form a perfect pump source for the Chameleon MPX wavelength extension OPO. This extends tuning to 1340 nm, also with dispersion precompensation, ideal for red shifted probes and techniques such as Third Harmonic Generation and CARS.

Reliability

Chameleon Vision lasers are qualified and proven on all major commercial two-photon microscope platforms. All Chameleon lasers are HASS tested to ensure highest product reliability, and benefit from Coherent’s acclaimed Advanced Replacement (ARU) service strategy to maximise system uptime.

Applications

  • Multiphoton Excitation (MPE) Microscopy
  • Time Resolved Spectroscopy
  • Optogenetic Photoactivation
  • Second Harmonic Generation Imaging
  • Pumping of Optical Parametric Oscillators (OPO)
  • Supercontinuum Generation

Chameleon Vision I
Chameleon Vision I
Tuning Range (nm)
Tuning Range (nm)
690 to 1040
Average Power at Peak (W)
Average Power at Peak (W)
2.5
Power Specifications
Power Specifications
640 mW at 690 nm
1.07 W at 710 nm
2.5W at 800 nm
920 mW at 920 nm
260 mW at 1040 nm
Dispersion Compensation Range
Dispersion Compensation Range
680 nm
680 nm
-
690 nm
690 nm
0 to 43,000 fs2
800 nm
800 nm
0 to 22,000 fs2
1020 nm
1020 nm
0 to 10,000 fs2
1080 nm
1080 nm
-
Tuning Speed (nm/s)
Tuning Speed (nm/s)
>35
Chameleon Vision II
Chameleon Vision II
Tuning Range (nm)
Tuning Range (nm)
680 to 1080
Average Power at Peak (W)
Average Power at Peak (W)
3.0
Power Specifications
Power Specifications
500 mW at 680 nm
-
1.5W at 710 nm
3.0W at 800 nm
1.35W at 920 nm
400 mW at 1040 nm
180 mW at 1080 nm
Dispersion Compensation Range
Dispersion Compensation Range
680 nm
680 nm
0 to 47,000 fs2
690 nm
690 nm
-
800 nm
800 nm
0 to 22,000 fs2
1020 nm
1020 nm
0 to 10,000 fs2
1080 nm
1080 nm
0 to 9,000 fs2
Tuning Speed2 (nm/s)
Tuning Speed2 (nm/s)
>40
Chameleon Vision I & II
Chameleon Vision I & II
Pulse Width (fs)
Pulse Width (fs)
140
Noise (%)
Noise (%)
<0.15
Output Power Stability
Output Power Stability
<±0.5
Spatial Mode
Spatial Mode
TEM00 (M2 <1.1)
Beam Diamater (mm)
Beam Diamater (mm)
1.2 ±0.2
Beam Ellipticity
Beam Ellipticity
0.9 to 1.1
Astigmatism (%)
Astigmatism (%)
<10
Repetition Rate (MHz)
Repetition Rate (MHz)
80
Polarization
Polarization
Horizontal >500:1
Pointing8 (μrad/nm)
Pointing8 (μrad/nm)
<80/100 total
Operating Voltage (VAC)
Operating Voltage (VAC)
90 to 250 (auto ranging)
Maximum Operating Current (A)
Maximum Operating Current (A)
<15 at 90 VAC (power supply)
<7 at 90 VAC (chiller)
<2 at 90 VAC (MRU x1)
System Power Consumption (W)
System Power Consumption (W)
2300 max., 1300 typical
Line Frequency (Hz)
Line Frequency (Hz)
47 to 63
Operating Temperature Range
Operating Temperature Range
15 to 35°C (59 to 95°F)
Non-operating Temperature Range
Non-operating Temperature Range
5 to 40°C (41 to 104°F)
Weight of Laser Head
Weight of Laser Head
52 kg (115 lbs.)
Weight of Power Supply
Weight of Power Supply
41 kg (90 lbs.)
Umbilical Length
Umbilical Length
3 m (10 ft.)
Chiller:
Chiller:
Dimensions (L x W x H)
Dimensions (L x W x H)
436 x 270 x 393 mm (17.17 x 10.63 x 15.47 in.)
Weight
Weight
11 kg (25 lbs.)
MRU Air Recirculator:
MRU Air Recirculator:
Dimensions (L x W x H)
Dimensions (L x W x H)
46 x 43 x 8.5 cm (18 x 17 x 3 in.)
Weight
Weight
9 kg (20 lbs.)
