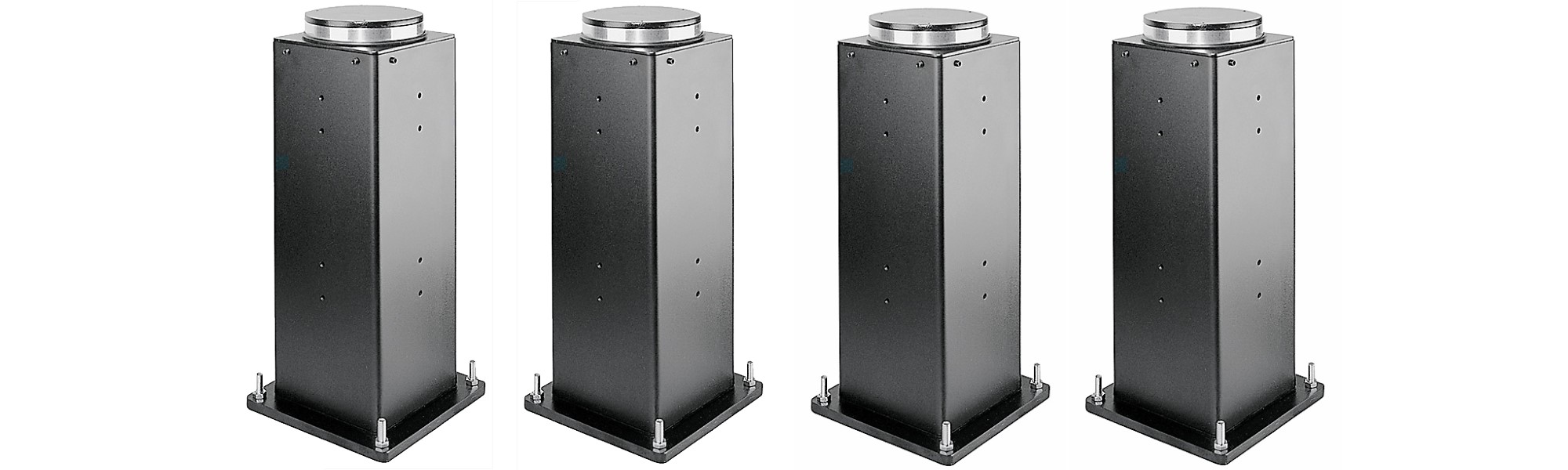

TMC System 1 Free-Standing Individual Posts

A convenient alternative to posts with tiebars when open access between the posts is necessary.

TMC System 1 Free-Standing Individual Posts
Custom Layout

Though generally configured in sets of 4 and 6 legs, other configurations can be made including 3 and 5 legs

Integrated Isolation Vibration

Includes TMC’s Pneumatic Gimbal Piston Isolation System

Flexible

Also available as a passive support system (without TMC’s Pneumatic Gimbal Piston Isolation System)

Isolator natural frequency:
Isolator natural frequency:
High Input
High Input
Vertical = 1.0Hz Horizontal = 0.8Hz
Low Input
Low Input
Vertical = 1.2-1.7Hz Horizontal = 1.0-1.5Hz
Isolation Efficiency @ 5Hz
Isolation Efficiency @ 5Hz
Vertical = 80-90% Horizontal = 80-90%
Finish
Finish
Medium texture Black powder coat frame
Facilities required
Facilities required
80psi nitrogen or air
