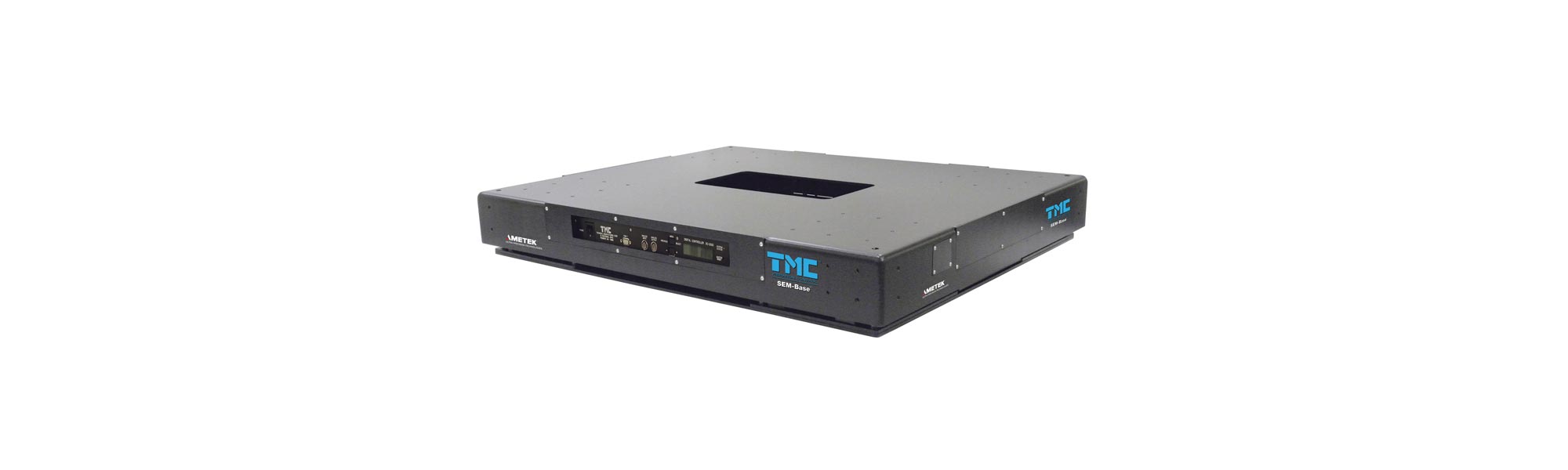

TMC Stacis iX SEM-Base

Active vibration cancellation floor platform system is designed for use with scanning electron microscopes (SEMs).

Scientifica are dedicated distributors for TMC. For sales enquiries outside of the United Kingdom for this product, please visit www.techmfg.com

TMC Stacis iX SEM-Base
Isolates low frequencies

Starting at 0.6 Hz, the SEM-Base is ideal for scanning electron microscopes (SEMs)

Cost effective

Similar to the 65 series STACIS 2100 Floor Platform, but with a smaller footprint

Minimal tuning

Installs easily with little to no turning required

High load capacity

Can support 900-2,500 pounds with no soft air suspension

Among the most vibration sensitive tools made, and these precision instruments typically incorporate an internal vibration isolation system

Incorporates STACIS technology but has a much smaller footprint and installs easily with minimal or no tuning.

With vibration cancellation starting below 1 Hz, SEM-Base features extended stroke piezoelectric actuators and damped, powder-coated steel plates that sandwich four isolators and TMC's DC 2000 digital controller.

Dimensions
Dimensions
35.5 x 44.5 x 6.5 inches - fits most commercial SEMs
Load capacity
Load capacity
900 - 2,500 lb
Vibration cancellation
Vibration cancellation
Starts below 1 Hz
Degrees-of-freedom
Degrees-of-freedom
6
