TMC STACIS III

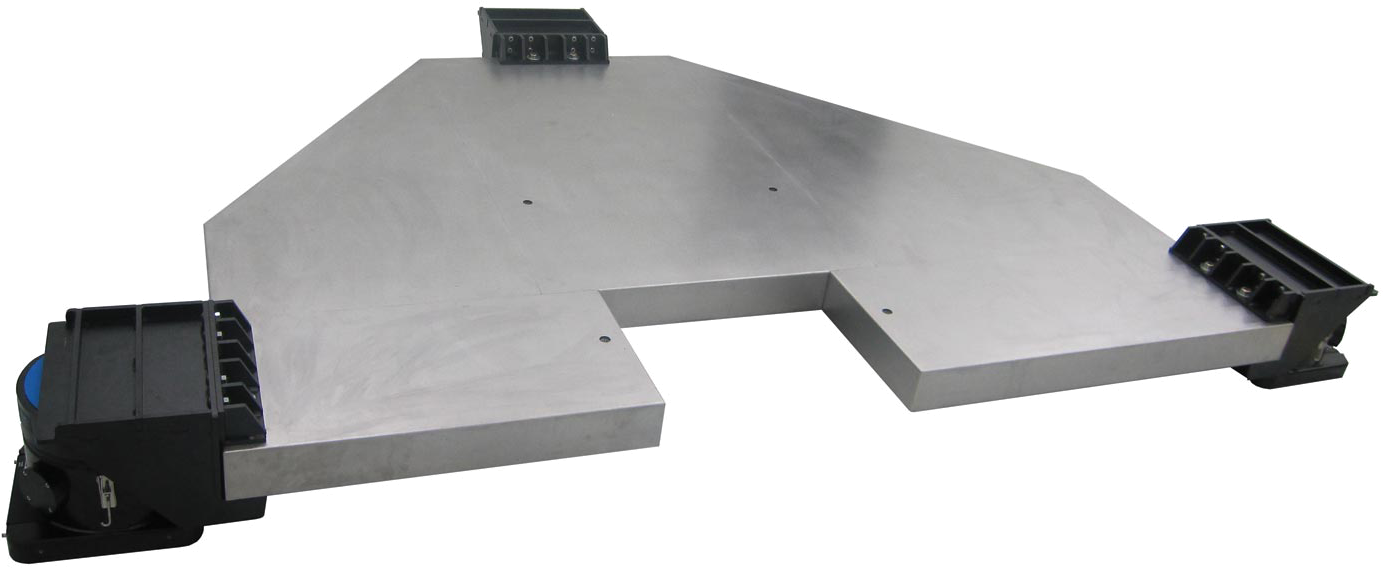

A stainless steel platform with a unique “lifthood” design, the isolator “cradles” the platform allowing the tool to be lifted a minimal distance above the floor

Scientifica are dedicated distributors for TMC. For sales enquiries outside of the United Kingdom for this product, please visit www.techmfg.com

Benefits

Instruments mounted on floor platforms (TEMS) are among the most vibration-sensitive tools made.

STACIS is compatible being “stacked” beneath any tool’s internal isolation system.

STACIS provides the best vibration isolation commercially available with no low-frequency amplification

For conventional lab floors, isolating building floor vibration from large, tall tools presents an ergonomic challenge. Placing the isolators directly beneath the tool may raise the tool to an impractical height. Furthermore, conventional air isolators are unstable when placed close together under a tall, top-heavy payload.

This product solves this dilemma. By combining our Stainless Steel Platforms with a unique "lifthood" design, our isolators "cradle" the platform allowing the tool to be lifted a minimal distance above the floor. Because the isolators are not integrated into the platform, the platform may be custom designed to match the tool footprint or any desired shape.

​Applications

Omicron Multiprobe Scanning Tunneling Microscopy (STM)

Scanning Electron Microscopes (SEM – ideal with iX STACIS SEM-Base)

Transmission Electron Microscopes (TEM)

Ion Mass Spectrometers

Design & Specifications

Net Load capacity:
Net Load capacity:
1,200 lb (545 kg)
Facilities required
Facilities required
80 psi air or nitrogen
Dimensions
Dimensions
19 (w) x 20 (d) x 3 in. (h) 458 (w) x 508 (d) x 76 mm (h)
Weight
Weight
50 lb (22kg)
