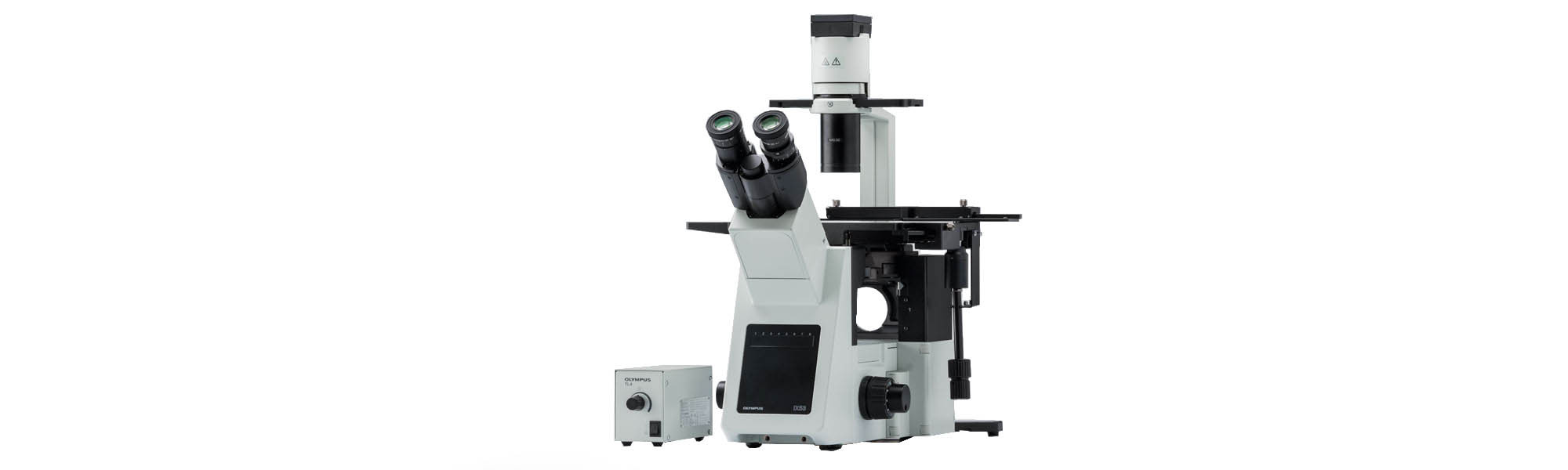

Designed from the ground up specifically for routine inverted microscopic analysis.
Excellent optical performance and mechanical quality results in a microscope of outstanding value and comfort for regular use.
Compact, with robust mechanical and thermal stability, making it ideal for any application in which specimens are frequently changed.
Outstanding working distance
Condensers and long working distance objectives allow flexible observation in the most complex sample devices. Easily perform micromanipulation, microinjection or IVF.
Dedicated to Fluorescence
Olympus fluorescence illumination systems and high definition ion coated filters provide the highest signal to noise performance.
The optional tilting binocular tube reduces operator neck strain, whilst long-term operation is made comfortable by the low positioned stage handle and focus knobs.
Making the invisible visible
All contrast techniques for living cells can be selected, including pre-centred phase contrast and relief contrast for accurate and clear 3D-like images.
Optical systemUIS2 optical system
Revolving nosepieceSextuple revolving nosepiece, simple waterproof structure
FocusStroke: 10 mm
|Transmitted light illuminator||
Transmitted light illuminator30 W halogen illuminator: Detachable condenser lens system (NA 0.3, W.D. 72 mm), single filter holder aperture iris diaphragm adjustable100 W halogen illuminator: pillar tilt mechanism (30° inclination angle, with vibration reducing mechanism), Condenser holder (with 88 mm stroke, refocusing mechanism) Field iris diaphragm adjustable, 4 filter holders
|Wide-field (FN 22)||
Wide-field (FN 22)Wide-field tilting binocularWide-field binocular
|Mechanical stage with right handle||
Mechanical stage with right handleStage stroke: X: 114 mm x Y: 75 mm, stage position locking function
Gliding stageUpper circular stage 360° rotatable, 20 mm (X/Y) travel
Plain stage232 mm (X) × 240 mm (Y) stage size, stage insert plate exchangeable (ø110 mm)
|Long working distance universal condenser||
Long working distance universal condenserNA 0.55, W.D. 27 mm 5 positions for optical devices (3 positions for ø30 mm and 2 position for ø38 mm)
|Long working distance relief contrast||
Long working distance relief contrastNA 0.5, W.D. 45 mm, 4 positions for optical devices (for ø50 mm, relief contrast optical devices rotatable)
|Ultra-long working distance||
Ultra-long working distanceNA 0.3, W.D. 73.3 mm, 4 positions for optical devices (for ø29 mm)
Fluorescence illuminatorStraight design with field iris diaphragm
|Fluorescence mirror turret||
Fluorescence mirror turretTurret with 8 positions, built-in shutter, simple waterproof structure
|Fluorescence light source||
Fluorescence light source130 W Halogen light guide illumination100 W Hg apo lamp housing and transformer100 W Hg lamp housing and transformer75 W Xenon lamp housing and transformer
Operation environmentIndoor use - Ambient temperature: 5º to 40ºC (41º to 104ºF) Maximum relative humidity: 80% for temperatures up to 31ºC (88ºF), decreasing linearly through 70% at 34ºC (93ºF), 60% at 37ºC (99ºF), to 50% relative humidity at 40ºC (104ºF). Supply voltage fluctuations: not to exceed ±10% of the normal voltage.
