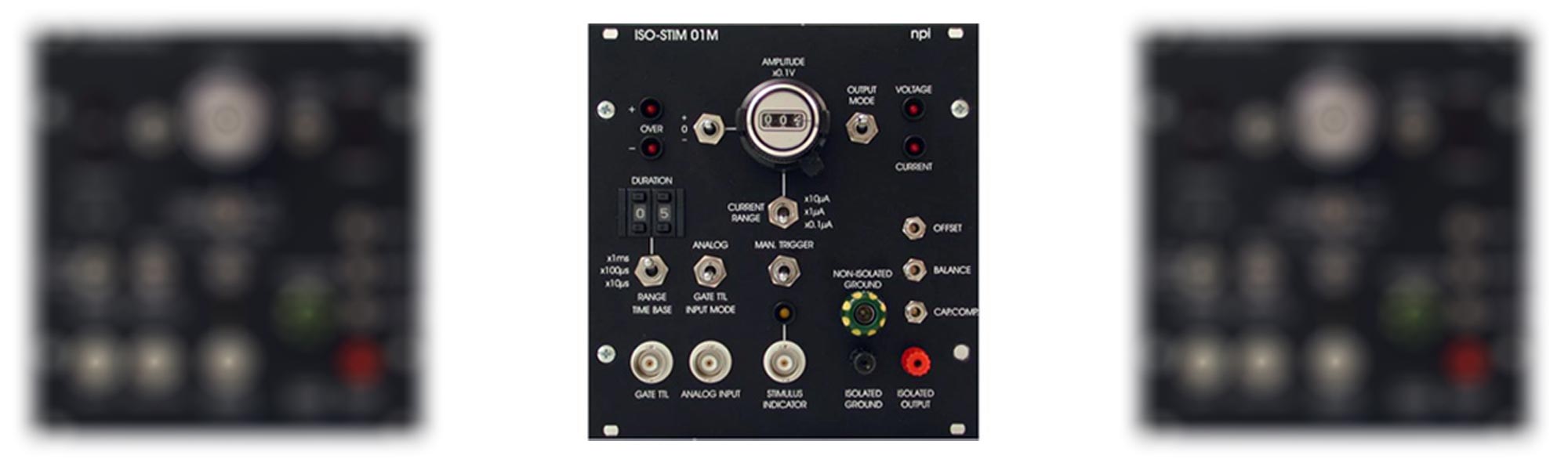

npi electronic ISO-STIM 01M Stimulus Isolator Module

Designed for application of extracellular stimuli like brain slices. Needs no batteries because it is powered by an external power supply.

npi electronic ISO-STIM 01M Stimulus Isolator Module
The output signal is optically isolated from ground

It can either be a constant voltage up to ±100V or a constant current up to ±10mA

The instrument has a high voltage output (pins marked isolated output/isolated ground, max ±100V). Do not touch these pins nor unisolated wires connected to these pins. Always turn power off if you manipulate devices connected to these pins

The ISO-STIM 01M is now able to generate a bipolar stimulus without delay between positive and negative part of the stimulus. The second part of the bipolar stimulus has the same amplitude and length as the first part but reverse polarity.

Input operating modes
Input operating modes
Direct, analog trigger, TTL trigger, selectable with toggle switch
Function modes
Function modes
Voltage source, current source, selectable with toggle switch
Source ranges
Source ranges
±10mA (current source)±100V (voltage source), selectable with toggle switch
Time range factors
Time range factors
x10µs, x100µs, x1ms, selectable with toggle switch, time range up to 99ms
Amplitude potentiometer
Amplitude potentiometer
3 digits, ±10V or ±10mA max, polarity selectable with toggle switch
Current range factors
Current range factors
X0.1 µA, x1 µA, x10µA, selectable with toggle switch
Time potentiometer
Time potentiometer
2 digits, 0-99 as multiplication factor selectable
Input voltage range
Input voltage range
±10V, amplified internally with gain of 10 (voltage source) or gain of 1 (current source)
Output voltage
Output voltage
±100V max, isolated
Output current
Output current
±10mA max, isolated
