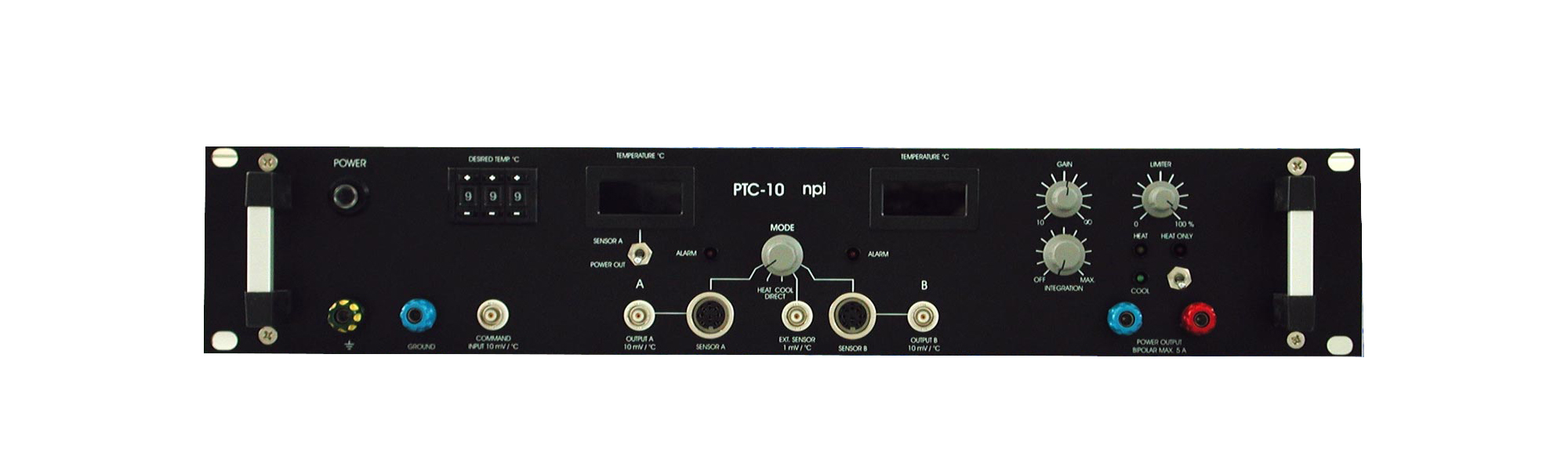

    npi electronic PTC-10 Temperature Control System

    Designed to control heating and cooling of devices

    npi electronic PTC-10 Temperature Control System
    1. 优点
    2. 产品规格
    Guarantees low noise operation

    Special protection features

    This is to prevent the preparation from damage

    Employs Peltier elements for temperature control during electrophysiological experiments

    Sensor input
    Sensor input
    For semiconductor 2252 Ohms at 25°C (standard) or platinum 100 Ohms at 0°C, accuracy typically 0.1 °Cat 25 °C, with electronic protection.
    Sensor input (EXT. mode)
    Sensor input (EXT. mode)
    1mV / °C
    Alarm and shutoff
    Alarm and shutoff
    Disconnects
    Power output
    Power output
    If temperature is below +3°C (not connected or broken sensor) or above +45°C (short circuited sensor)
    Digital displays
    Digital displays
    3 ½ digits, XX.X °C (temperature of SENSOR A or B) or XX.X V (voltage at power output)
    Command input
    Command input
    Analog input, 10 mV / °C, via BNC connector
    Set value control
    Set value control
    Digital control, range 2-45°C, XX.X°C or 0-100% of output voltage (DIRECT mode)
    Temperature output
    Temperature output
    Analog outputs, 10 mV / °C, via BNC connector, output impedance: 250 Ohms
    Power output
    Power output
    ±15 V / 5 A, short circuit protected, continuous
    DC limiter
    DC limiter
    Control for the output voltage with a linear range from 0-100%
    Control
    Control
    PI (proportional-integral) controller, accuracy typically ±0.2 °C, gain range 10-10k, integration time 50 ms - 20 s (logarithmic scale)
    Measuring accuracy
    Measuring accuracy
    0.1 °C at 25 °C
    Power requirements
    Power requirements
    115/230 V AC, 60/50 Hz, fuse 3.15 / 1.6 A slow
    Dimensions
    Dimensions
    19” rackmount cabinet 19” (483 mm), 10” (250mm), 3.5” (88mm)
