npi electronic MTC-20/2S Temperature Control System
The MTC-20/2S temperature control system is designed for heating purposes in electrophysiological experiments.

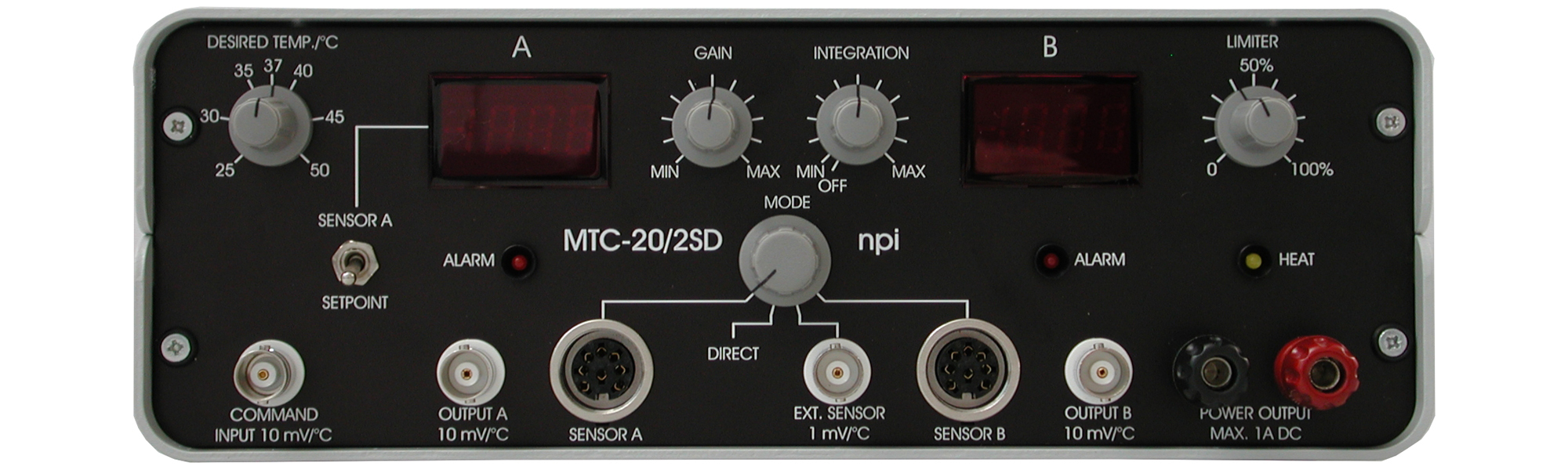

The MTC-20/2S system is housed in small desktop cabinet that can be placed close to the microscope, with built-in power supply and cooling elements for the power devices.
The system guarantees low noise operation and has special protection features to prevent the preparation from damage
The MTC-20/2S incorporates two electronic thermometers for small semiconductor sensors (R2252, i.e. the sensor has a resistance of 2252 Ohms at 25 °C), two digital temperature displays (XX.X °C), a set-point control with digital readout (XX.X °C), a PI (proportional-integral) controller with adjustable parameters, an output power control unit and a high-power output stage (DC, continuous operation) for resistive ( i.e. heat only) loads with electronic protection circuits. The power output is short circuit protected; the output power is limited electronically.
The MTC-20/2S controller is delivered with a power cord and a user manual. Sensors must be purchased separately.
MTC-20/2S, one channel temperature controller, for heating.
TS-100, sensor, temperature sensor for TC/PTC/MTC systems.
TS-200, sensor, miniature temperature sensor for TC/PTC/MTC systems.
Sensor inputFor semiconductor 2252 Ohms at 25 °C (standard) or platinum 100 Ohms at 0 °C, accuracy typically 0.1 °C at 25 °C, with electronic protection
|Sensor input (EXT. Mode)||
Sensor input (EXT. Mode)1mV / °C
|Alarm and shutoff||
Alarm and shutoffDisconnects
Power outputIf temperature is below +3 °C (not connected or broken sensor) or above +45 °C (short circuited sensor)
Digital displays3 1/2 digits, XX.X °C (temperature of SENSOR A or B) or XX.X V (voltage at power output)
Command inputAnalog input, 10 mV / °C, via BNC connector
|Set value control||
Set value controlPotentiometer, range +5...+45 °C
|Temperature output (A,B)||
Temperature output (A,B)Analog outputs, 10mV / °C, via BNC connector, output impedance: 250 Ohms
Power output12 V / 1 A, short circuit protected, continuous
DC limiterControl for the output voltage with a linear range from 0 - 100 %
ControlPI (proportional-integral) controller, accuracy typically ±0.2 °C, gain range 10-10k, integration time 50 ms - 20 s (logarithmic scale)
|Temperature control range||
Temperature control range+3 °C...+45 °C
Measuring accuracy0.1 °C at 25 °C
Power requirements115 / 230V AC, 60 / 50 Hz, fuse 0.8 / 0.4 A slow
DimensionsDesktop cabinet, 246 mm, 260 mm, 90 mm
