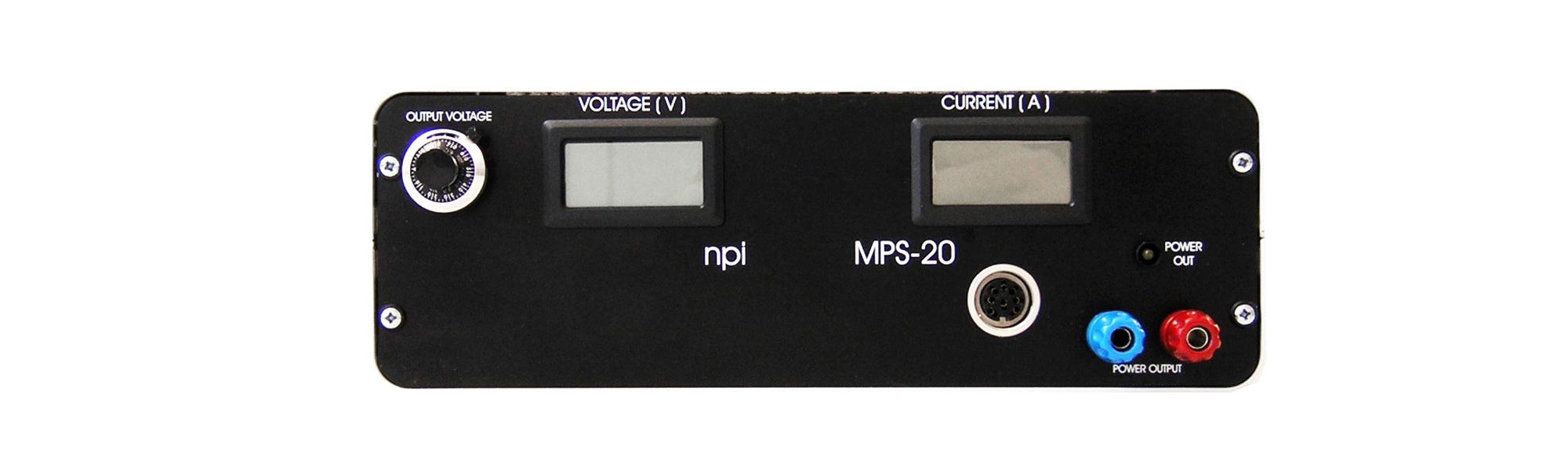

npi electronic MPS-20 One Channel Heater
The MPS-20 heating device is designed for heating purposes in electrophysiological experiments.
It can be used in addition to npi temperature controllers such as MTC-20/2S, TC-10 etc.
The MPS-20 system is housed in small desktop cabinet that can be placed close to the microscope, with built-in power supply and cooling elements for the power devices
The system guarantees low noise
The MPS-20 controller is delivered with a power cord and a user manual
The output is connected to a high-power regulated stage (DC, continuous operation) for resistive loads. The power output is short circuit protected, the output power is limited electronically. Maximal output voltage is approximately 12 V, the current is limited to 1.5 A (peak).
The output is connected to a high-power regulated stage (DC, continuous operation) for resistive loads. The power output is short circuit protected, the output power is limited electronically. Maximal output voltage is approximately 12 V, the current is limited to 1.5 A (peak).
| Digital displays | 4 digits, XX.XX V (voltage at power output) or 3 digits X.XX A (current at power output) |
|---|---|
| Power output | continuous: 12 V / 1.0 A, peak: 12 V / 1.5 A, short circuit protected |
| Power requirements | 115 / 230V AC, 60 / 50 Hz, fuse 0.5 / 0.25 A slow dimensions: desktop cabinet, 246 mm, 260 mm, 90 mm |
