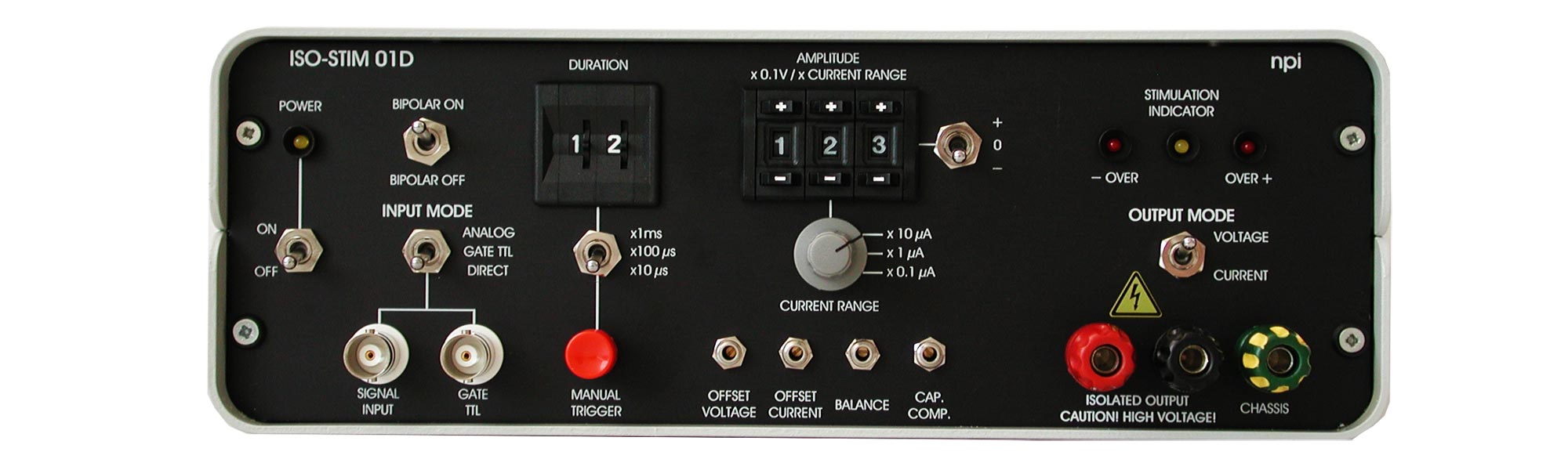

npi electronic ISO-STIM 01D

The ISO-STIM 01D stimulus isolation unit is designed for application of extracellular stimuli, e.g. in brain slices.

It is able to generate a bipolar stimulus without delay between positive and negative part of the stimulus. The second part of the bipolar stimulus has the same amplitude and length as the first part but reverse polarity.

npi electronic ISO-STIM 01D
Stimulus duration set by two digit control from an internal, digital timer (10 - 99 ms) or by an external source

Stimulus polarity set by switch (+, 0, -) or by data acquisition system

Capacitance compensation for the electrode capacitance

  • No batteries needed
  • Isolated output
  • Three input modes: analog, gate TTL, direct
  • Stimulus amplitude set by three digit control and a range switch (current) or by an external source, e.g. a data acquisit system.
  • Current (±10 mA) or voltage (±100 V) source output
  • "Overrange" and "active" LED indicators
  • True current clamp mode (optional)
  • By default with bipolar stimulus generation

Input operating modes
Input operating modes
Direct, analog trigger, TTL trigger, selectable with toggle switch
Function modes
Function modes
Voltage source, current source, selectable with toggle switch
Time range factors
Time range factors
x10 µs, x100 µs, x1ms, selectable with toggle switch, time range up to 99 ms
Amplitude potenetiometer
Amplitude potenetiometer
3 digits, ±10 V or ±10 mA max, polarity selectable with toggle switch
Current range factors
Current range factors
x0.1 µA, x1 µA, x10 µA, selectable with toggle switch
Time potenetiometer
Time potenetiometer
2 digits, 0 - 99 as multiplication factor selectable
Output voltage
Output voltage
±100 V max., isolated
Output current
Output current
±10 mA max., isolated
Input voltage range
Input voltage range
±10 V, amplified internally with gain of 10 (voltage source) or gain of 1 (current source)
Source ranges
Source ranges
±10 mA (current source),±100 V (voltage source)
±100 V (voltage source), selectable with toggle switch
