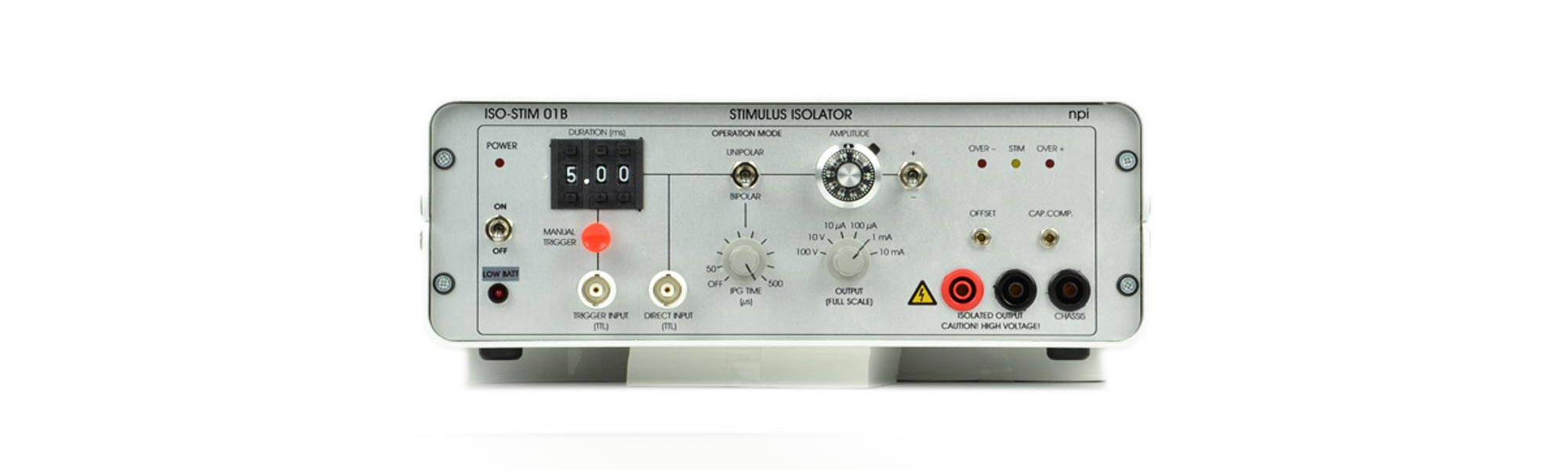

npi electronic ISO-STIM 01B

The ISO-STIM stimulus isolation unit is designed for the application of extracellular stimuli, e.g. in brain slices. It is able to generate a bipolar stimulus without delay between positive and negative part of the stimulus.

npi electronic ISO-STIM 01B
Adjustable amplitude

The amplitude can be set manually with a ten-turn potentiometer

Adjustable Interphase Gap

Change the length of the gap between stimuli

Complex timing options

Combine with the TMR-01B to create complex stimulation patterns

2 pulse modes: direct input: TTL duration = pulse duration (with bipolar option) trigger input: pulse duration set by internal timer (10 μs ... 10 ms).

Voltage or current output max. 100 V/10 MA unipolar or bipolar.

2 external power supply optionsL line: (input 90 V...240 V AC) battery: ±40 V up to ±100 V (user selectable)

Input resistance
Input resistance
2 kΩ
Output
Output
Monopolar or bipolar, selected by toggle switch
Output voltage
Output voltage
±100 V max., isolated
Output current
Output current
±10 mA max., isolated
IPG (interphase gap)
IPG (interphase gap)
50 - 500 µs
Charging current
Charging current
25 mA/cell (normal), 50 mA/cell (fast)
Charging time from empty to fully charged
Charging time from empty to fully charged
12 h (normal), 6 h (fast)
Capacity battery pack
Capacity battery pack
500 mAh (low voltage part) 250 mAh (high voltage part)
Power requirements
Power requirements
100 - 240 V, AC, only use supplied charger, battery pack or power supply
Fuses
Fuses
Battery Charger: 1.25 A, slow
Power supply: 1.25 A, slow
Dimensions
Dimensions
ISO-STIM 01B: 246 x 188 x 89 mm³ (W x D x H)
Battery Pack: 246 x 188 x 89 mm³ (W x D x H)
Battery Charger: 103 x 169 x 59 mm³ (W x D x H)
Power Supply: 103 x 169 x 59 mm³ (W x D x H)
Efficacy of a new charge-balanced biphasic electrical stimulus in the isolated sciatic nerve and the hippocampal slice

International Journal of Neural Systems
