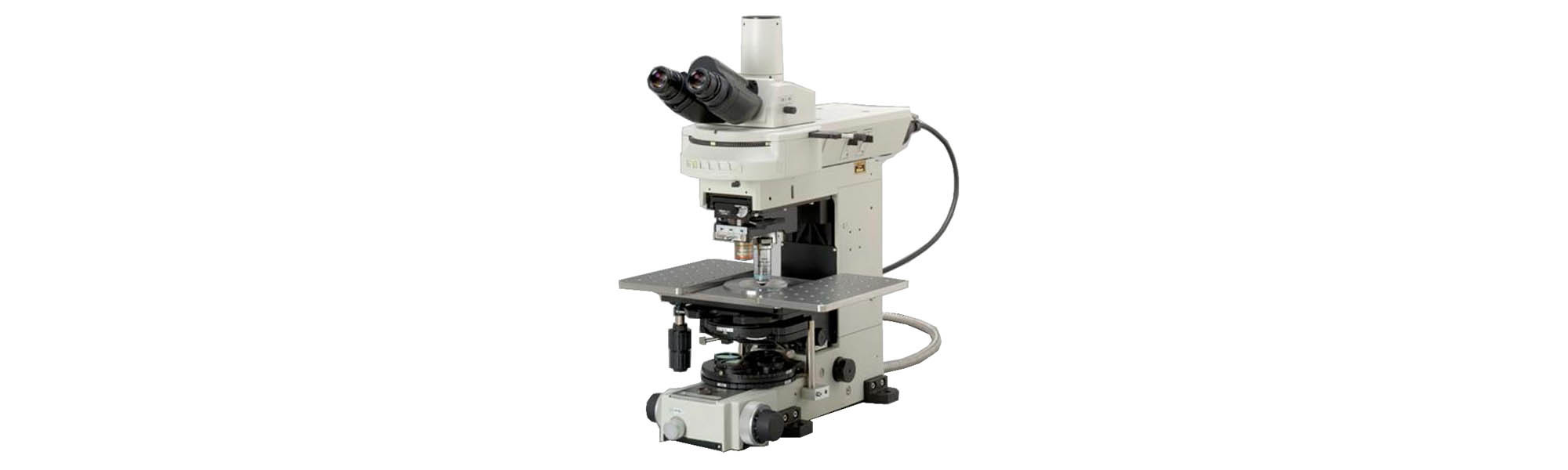

Nikon Eclipse FN1
An upright, fixed stage microscope developed to meet the rigorous demands of electrophysiological research.
The FN1 has a completely redesigned optical system that includes the world's first water dipping objective with depth-induced aberration correction.
The new optics deliver longer working distances, slimmer profiles, better approach angles, and aberration-free images.
The focus knob and field diaphragm ring are on the front for easy operation with a fixed stage. An optional remote handle enables ON/OFF and light intensity adjustment.
Safe and easy objective change
The sliding nosepiece helps to reduce specimen disturbance when changing objectives.
Simple insertion of microelectrodes
New physiological water dipping objectives feature working distances of up to 3.5 mm, with slimmer profiles and a 45-degree approach angle for easy pipette placement.
Lift the microscope between 10 and 30 mm to facilitate large specimen observation. Moreover, the condenser, sub-stage and turret can be removed for more free space.
Optical systemCFI60 and CFI75 infinity optical system
Main bodyI-shaped, external power supply
FocusingVia nosepiece up/down movement; Manual coaxial coarse/fine focus knobs (on both sides)
NosepieceFN-S2N Sliding Nosepiece (for CFI60 objectives); Front/back 2-position; DIC prism attachable; FN-MN-N Single Objective Holder (for CFI75 objective); 1-position; DIC prism attachable
LWD condenserUniversal turret type; NA: 0.78, WD: 7.2mm; DIC and Oblique Light observations possible
Eyepiece10x, F.N.: 22, 25
Eyepiece tubesY-TB Binocular Tube (Bino 100%); C-TE Ergonomic Binocular Tube (Bino 100%, Bino: DSC port = 50:50) (DSC port cannot be used with variable magnification double port); Y-TF Trinocular Tube FUW (Bino: Photo = 100:0, 0:100); Y-TT Trinocular Tube TUW (Bino: Photo = 100:0, 20:80, 0:100); LV-TI3 Trinocular Tube ESD (Bino: Photo = 100:0, 0:100); LV-TT2 Tilting Trinocular Tube (Bino: Photo = 100:0, 20:80, 0:100)
StageFN-3PS2 FN1 Rectangular Stage (3-plate mechanical stage); Stroke: 30mm (X, Y)
Light sourceFN-LH Pre-centered Lamphouse: 12V/100W long-life halogen lamp; LS-DWL-N Optical Fiber Illuminator (Sumita Optical glass, Inc.): 12V/100W halogen lamp
Operating conditionsTemperature: 10 - 40° C; Humidity: 85% RH max. (no condensation)
Dimensions214 (W) x 346 (H) x 422 (D) mm, approx. 12 kg (main body)
