DAGE IR-2000

The NEW IR-2000 monochrome camera is the next evolution of IR imaging for applications requiring fast response and excellent sensitivity in both the visible and NIR (up to 1100nm).

DAGE IR-2000

Available in a stand-alone configuration or PC ready, the IR-2000 features live imaging at industry leading frame rates and up to 4K resolution. Users can operate in an auto mode or access on-screen menus for camera settings, annotation, measurements, time lapse, and more! Real-time zoom provides instant magnification for viewing small details in live or captured images.

Two models offer users greater flexibility

PC Ready

IR-2000 with IR-Capture software –USB 3.0 output for interface with Windows OS computer

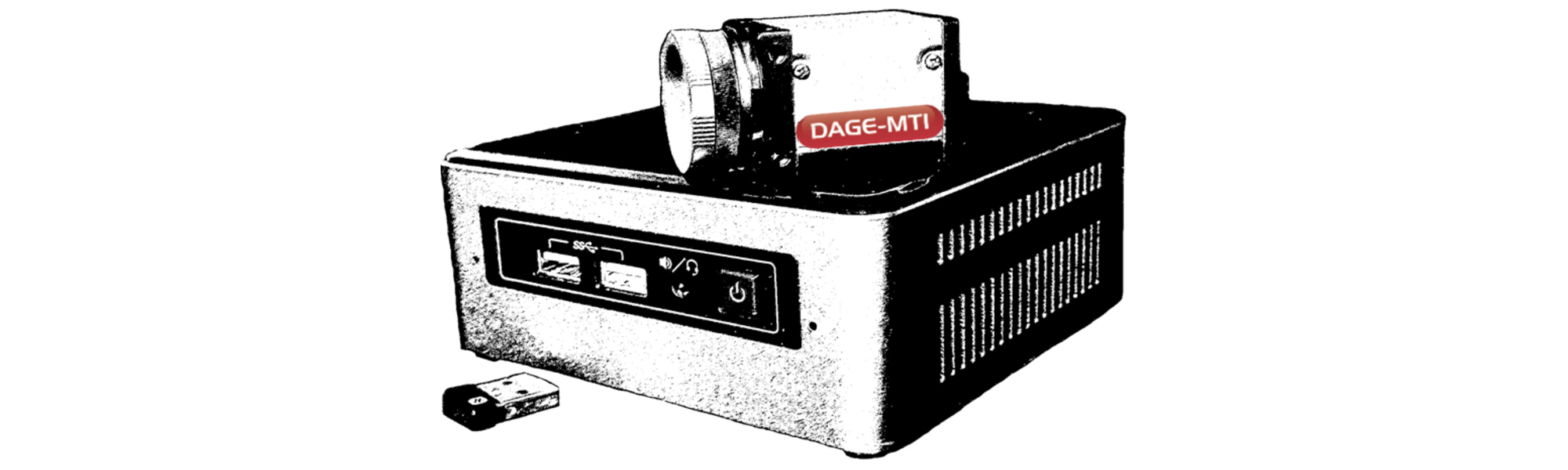

Stand-Alone

IR-2000 with controller – ready to go out of the box – no software download required. Connect directly to HD/UHD display via HDMI. On-screen display offers access to all IR Capture functions. Capture images in controller or to USB drive (requires mouse & keyboard

  • 6.3 MP (3072 x 2048) CMOS USB 3.0 camera
  • Excellent response in visible and NIR (up to 1100nm)
  • Selectable on-screen resolutions and fast frame rates,
  • including:
    • 3072 x 2048 @ 30fps max
    • 1920 x 1080 @ 90fps max
    • 640 x 480 @ 248 fps max
  • On-screen image enhancement controls, including
    • Auto/manual gain
    • Auto/manual exposure (1/50,000 sec to 60 sec)
    • Brightness & contrast controls
    • Real-time edge enhancement
    • Real-time zoom for viewing small details
  • On-screen capture and add-on tools, including
    • Easy capture & record buttons
    • Time lapse recording
    • Save File: Bmp, Jpeg, Gif, Tiff, Png
    • Measurement tools – stored calibrations
    • On/off overlays, scale bar, annotations
    • Drawing tools (crosshair, mouse, grid, etc.)
  • Trigger & I/O inputs
  • 0.5X C-mount microscope coupler recommended

Image Sensor:
Image Sensor:
1-1/8 inch CMOS, Monochrome
Resolution:
Resolution:
3,072 x 2,048 (6.3MP) max – selectable resolution
Live Frame Rates/Resolution (selectable):
Live Frame Rates/Resolution (selectable):
30 fps max @ 3,072 x 2,048
90 fps max @ 1,920 x 1,080
248 fps max @ 640 x 480
Region of Interest:
Region of Interest:
Real-time zoom, user selectable
Shutter:
Shutter:
20 µsec to 60 sec
Output Signal:
Output Signal:
Camera: USB 3.0
Controller: Display - HDMI; Ports – 4 x USB 3.0, Type-A
1 x Micro SD/SDHC/SDCX
Power:
Power:
Camera: 4.5 VDC to 5.5 VDC, ~20 mA @ 5 VDC
Controller: 19 VDC, 3.43A
Lens Mount:
Lens Mount:
C/CS
Coupler:
Coupler:
0.5X microscope coupler recommended
Dimensions:
Dimensions:
Camera: 29mm x 29mm 43mm
Controller: 4.5 x 4.4 x 2.0” / 114.3 x 111.8 x 50.8mm
Operating Temperature:
Operating Temperature:
-5° C to 45° C
Operating Humidity:
Operating Humidity:
20% to 80% (non-condensing)
Minimum PC (for PC-Ready IR-2000):
Minimum PC (for PC-Ready IR-2000):
Windows 7, 8, 10 (32 & 64 bit)
Intel Core i3 or similar, 2 GB RAM
Direct X 10 or higher graphics card
USB 3.0 port
Mouse & Keyboard:
Mouse & Keyboard:
Required
VESA Mount:
VESA Mount:
Included
