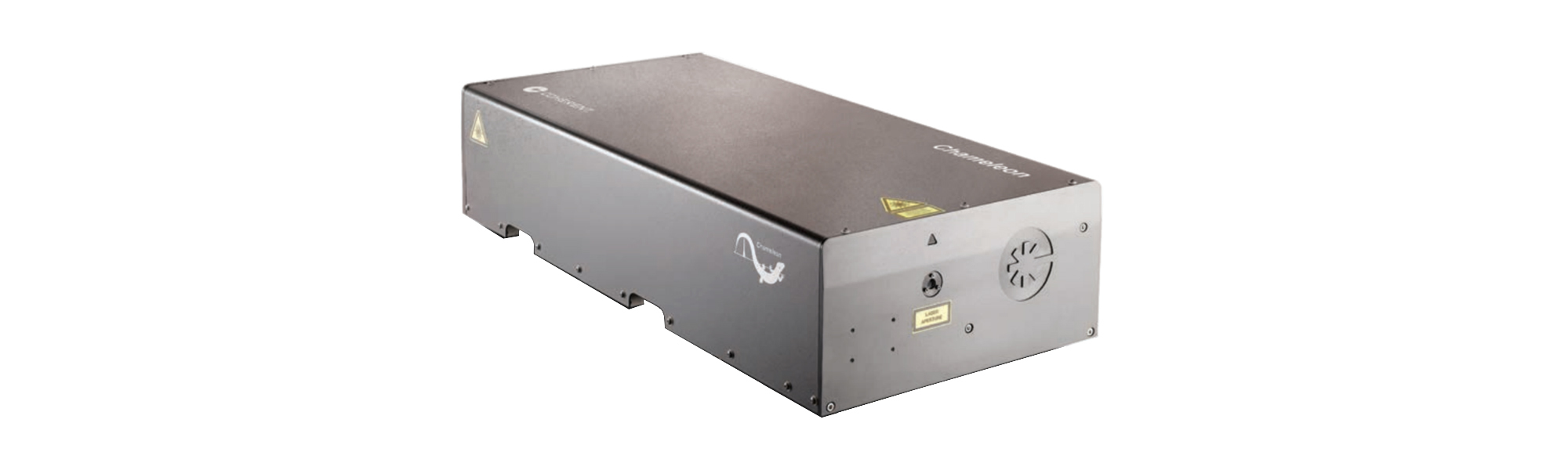

Coherent Chameleon Vision-S

The Chameleon Vision-S is purpose designed for applications in two photon microscopy where having the shortest pulses is paramount to ensure optimum image brightness when working with thermally sensitive samples.

For more information, visit https://www.coherent.com

Coherent Chameleon Vision-S

Highest Peak Power

Chameleon Vision-S delivers the highest peak power at the sample, providing at the same time the broadest tuning range among automated short pulse Ti:Sapphire lasers designed for non-linear imaging.

Automated Dispersion Precompensation in a Single Box

The exceptional performance enables Chameleon Vision to easily manage pulse duration and excitation wavelength, providing brighter images and better sample viability. The built in pre-compensation provides a user friendly method to optimize pulse width at the focal plane, to study the interplay of peak power, average power and pulse duration on different samples. For example, by mismatching the pre-compensation, it is possible to vary the pulse duration at the sample between the fully compensated value of 75 fs to chirped pulse durations of several hundreds of femtoseconds.

Flexibility

The flexibility of the Vision family makes it ideal not only for microscopy but also for time-resolved spectroscopy and Terahertz studies.

Reliability

Chameleon Vision lasers are qualified and proven on all major commercial twophoton microscope platforms. All Chameleon lasers are HASS tested to ensure highest product reliability, and benefit from Coherent’s acclaimed Advanced Replacement (ARU) service strategy to maximise system uptime.

Applications

  • Multiphoton Excitation (MPE) Microscopy
  • Time Resolved Spectroscopy
  • Optogenetic Photoactivation
  • Second Harmonic Generation Imaging
  • Supercontinuum Generation

Tuning Range (nm)
Tuning Range (nm)
690 to 1050
Average Power at Peak (W)
Average Power at Peak (W)
2.5
Peak Power at Peak (kW)
Peak Power at Peak (kW)
>440
Peak Power Specifications
Peak Power Specifications
80 kW at 690 nm
440 kW at 800 nm
240 kW at 920 nm
50 kW at 1050 nm
Dispersion Compensation Range
Dispersion Compensation Range
690 nm
690 nm
0 to 43,000 fs2
800 nm
800 nm
0 to 22,000 fs2
1050 nm
1050 nm
0 to 9500 fs2
Tuning Speed (nm/s)
Tuning Speed (nm/s)
>25
Pulse Width (fs)
Pulse Width (fs)
75
Noise (%)
Noise (%)
<0.15
Output Power Stability
Output Power Stability
<±0.5
Spatial Mode
Spatial Mode
TEM00 (M2 <1.1)
Beam Diameter (mm)
Beam Diameter (mm)
1.2 ±0.2
Beam Ellipticity
Beam Ellipticity
0.9 to 1.1
Astigmatism (%)
Astigmatism (%)
<10
Repetition Rate (MHz)
Repetition Rate (MHz)
80
Polarization
Polarization
Horizontal >500:1
Pointing (μrad/nm)
Pointing (μrad/nm)
<80/100 total
Operating Voltage (VAC)
Operating Voltage (VAC)
90 to 250 (auto ranging)
Maximum Operating Current (A)
Maximum Operating Current (A)
<15 at 90 VAC (power supply)
<7 at 90 VAC (chiller)
<2 at 90 VAC (MRU x1)
System Power Consumption (W)
System Power Consumption (W)
2300 max., 1300 typical
Line Frequency (Hz)
Line Frequency (Hz)
47 to 63
Operating Temperature Range
Operating Temperature Range
15 to 28°C (59 to 82.5°F)
Non-operating Temperature Range
Non-operating Temperature Range
5 to 40°C (41 to 104°F)
Storage Temperature Range
Storage Temperature Range
5 to 40°C (41 to 104°F)
Weight of Laser Head
Weight of Laser Head
52 kg (115 lbs.)
Weight of Power Supply
Weight of Power Supply
33 kg (73 lbs.)
Umbilical Length
Umbilical Length
3 m (10 ft.)
Chiller:
Chiller:
Dimensions (L x W x H)
Dimensions (L x W x H)
436 x 270 x 393 mm (17.17 x 10.63 x 15.47 in.)
Weight
Weight
11 kg (25 lbs.)
MRU Air Recirculator:
MRU Air Recirculator:
Dimensions (L x W x H)
Dimensions (L x W x H)
46 x 43 x 8.5 cm (18 x 17 x 3 in.)
Weight
Weight
9 kg (20 lbs.)
