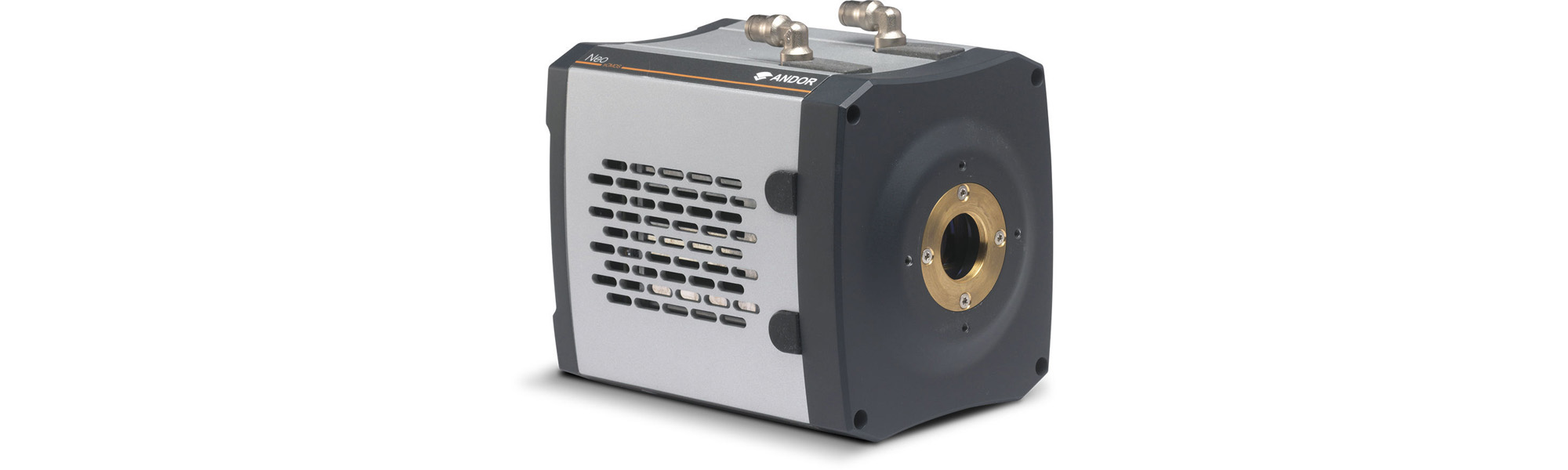

    Andor Neo sCMOS

    Specifically engineered to harness the full performance potential of the new and exciting sensor technology.

    It's unique in its ability to simultaneously offer ultra-low noise, extremely fast frame rates, wide dynamic range, high resolution and a large field of view.

    Andor Neo sCMOS
    1. 附加信息
    2. 产品规格

    1eˉ read noise

    Offers lower detection limit than any CCD.

    5.5 megapixel sensor format and 6.5µm pixels

    Delivers extremely sharp resolution over a 22mm diagonal field of view: ideal for cell microscopy.

    Rapid frame rates

    100fps full frame; 208fps at 1.4 megapixel ROI; 1688fps at 144x128 ROI

    TE cooling to -40°C

    Minimisation of dark current and pixel blemishes with fan off mode.

    UltraVac™

    Sustained vacuum integrity and unequalled cooling with 5 year warranty; complete sensor protection.

    Active pixels
    Active pixels
    2560 x 2160 (5.5 megapixel)
    Sensor size
    Sensor size
    16.6 x 14.0mm (21.8mm diagonal)
    Pixel size
    Pixel size
    6.5µm
    Pixel well depth (typical)
    Pixel well depth (typical)
    30000 eˉ
    Readout speeds (MHz)
    Readout speeds (MHz)
    560, 400, 200
    Read noise
    Read noise
    1 eˉ at 200 MHz
    Maximum cooling
    Maximum cooling
    -40°C
    Maximum QE
    Maximum QE
    57%
    Maximum frame rate
    Maximum frame rate
    100fps at full frame 1688fps at 144x128 ROI
    Minimum temperature air cooled
    Minimum temperature air cooled
    -30°C
    Minimum temperature coolant
    Minimum temperature coolant
    -40°C
    Readout modes
    Readout modes
    Rolling shutter and global shutter (snapshot)
    Internal memory buffer size
    Internal memory buffer size
    4 GB
    Maximum dynamic range
    Maximum dynamic range
    30000:1
    Linearity
    Linearity
    Better than 99%
    MTF
    MTF
    76.9 Ip/mm
    Dark current (eˉ/pixel/sec) at -40°C
    Dark current (eˉ/pixel/sec) at -40°C
    0.03 eˉ
    Photon response non-uniformity (PRNU)
    Photon response non-uniformity (PRNU)
    <2% (uncorrected)
    Maximum frame rates 2560x2160 (full frame) 144x128 ROI
    Maximum frame rates 2560x2160 (full frame) 144x128 ROI
    100fps rolling shutter, 50fps global shutter, 1688fps rolling shutter, 844fps global shutter
    Sub-array
    Sub-array
    4MP, 3MP, HD, 1.4MP, 528 x 512, 144 x 128
    Triggering (timing inputs/outputs)
    Triggering (timing inputs/outputs)
    External trigger, frame readout, fire, arm
    System window type
    System window type
    Single window with double-sided AR coating
    Software interface
    Software interface
    Solis Imaging, iQ, Andor SDK, 3rd party interfaces
